ZHEJIANG HAOLY LIMITED

We are specializing in developing, producing and trading various types of Printing and Packaging Machine

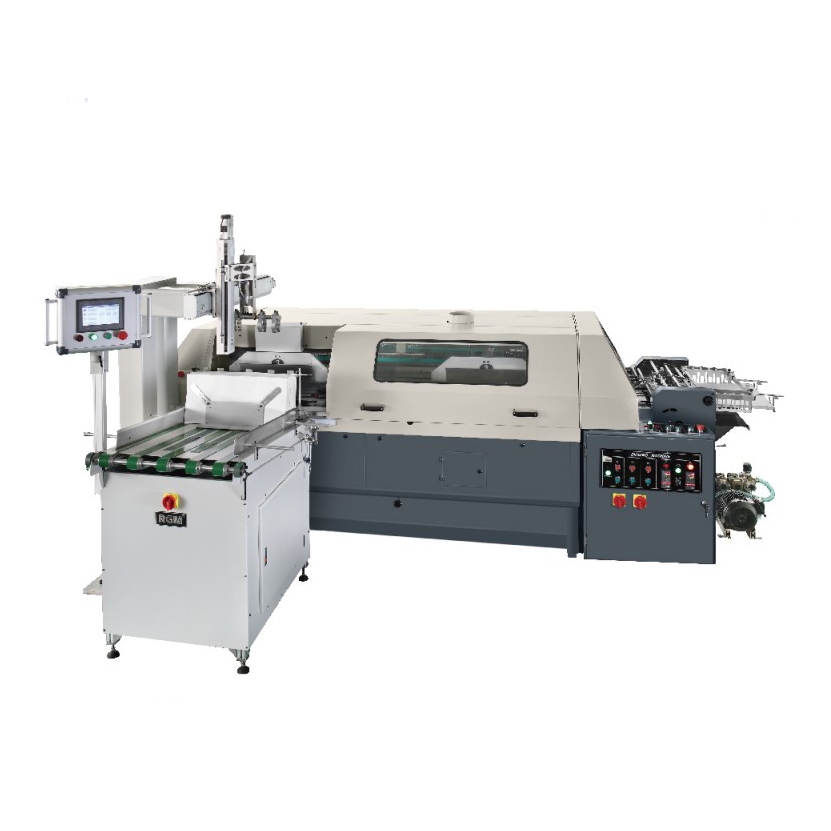

HL-TBT50/4G/580 Fully automatic elliptical glue binding machine with manipulators

HL-TBT50/4G/580 Fully automatic elliptical glue binding machine with manipulators When works, this machine adopts multi advanced techniques such as frequency speed-regulation control, PID temperature control, photoelectric recognition control, and trouble inspection automatically control etc. And high-dependability electric element and pneumatic element, which can enhance the dependability greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device and waste-gas exhaust. This machine not only uses thread mucus binding, but also no thread mucus binding, thus is the ideal equipment of various medium or small sized printing factories and printing factories of colleges in no thread mucus binding or thread mucus binding. This machine is offered the book core by manpower, and automatically finishes 10 procedures below: Milling back; Opening groove; Back mucus coating; Side mucus coating; Cover…

  • تفاصيل المنتج
  • الميزات

HL-TBT50/4G/580 Fully automatic elliptical glue binding machine with manipulators When works, this machine adopts multi advanced techniques such as frequency speed-regulation control, PID temperature control, photoelectric recognition control, and trouble inspection automatically control etc. And high-dependability electric element and pneumatic element, which can enhance the dependability greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device and waste-gas exhaust. This machine not only uses thread mucus binding, but also no thread mucus binding, thus is the ideal equipment of various medium or small sized printing factories and printing factories of colleges in no thread mucus binding or thread mucus binding.

This machine is offered the book core by manpower, and automatically finishes 10 procedures below:

  1. Milling back;
  2. Opening groove;
  3. Back mucus coating;
  4. Side mucus coating;
  5. Cover and book core compossing
  6. Cover impressing
  7. Cover packing;
  8. Finshed-product output
  9. Book spine pressing;

10.Cooling till final nice products.



Heavy-duty type:The machine work, the manipulator automatic supply book core,Automatically complete the following process:

1.Strong wearing resistance

2.High precision

3.Great clamp force

  1. Steady top down

5.Indeformable front and back clamp plates



TBT50/4G / 580 fully automatic machine with elliptical glue (mechanical) exercise books, it is composed of multiple sets of servo electric cylinder and pneumatic components control, implements the automatic supply core book.

Detailed Data: automatic glue Binding Machine

Binding size

Binding thickness

装订幅面

包本厚度

Max:580X300mm Min:150X105mm

单机(stand-alone)1.5-50mm、机械手(manipulator)1.7-20mm

Binding speed

Power required

包本速度

全机功率

Max:2000Books/ Hour

12Kw

Weight 机器重量 2100Kg
Dimensions 外型尺寸 3550×1330 ×1300mm





عينة لآلة الربط بالسكّر

فيديو

من نحن

شركة تشجيانغ هاولي المحدودة يجمع بين السعر التنافسي الشديد والتكنولوجيات المبتكرة وخبرة التصدير الطويلة في مجال آلة الطباعة، وآلة الطباعة، وآلة التغليف، وآلة الطباعة السريعة. نحن الخيار الأفضل بالنسبة لقطاع الطباعة والتغليف.

خلال السنوات العشر الماضية، ركزت شركة لانسي جينهوا على آلات لصنع دفاتر تمارين مطبوعة بالخيط، وأدوات مطوية، وأدوات تغليف، وأدوات تغليف صلبة ورفيعة. يمكنها تصنيع آلات كاملة التلقائية. آلة لصنع دفاتر الملاحظات، آلة كتابة ورقة التمرين، آلة خياطة الكتب، غلاف في آلة، آلة تصنيع غلاف خارجي، مقطّع ثلاثي الجوانب، آلة لصق السرج، آلة ملزمة بالدباغة، وغيرها من آلات ما بعد الطباعة.

يمكننا أيضًا توفير أنواعًا من آلات الطباعة والتغليف، مثل:

1. آلة ما بعد الطباعة: آلة قص الورق، آلة اللحام، آلة التجعد والقطع، آلة النقش الحراري، آلة طي الورق، آلة تجميع الورق، آلة القطع، آلة فتحة العين

2. آلة الطباعة: آلة الطباعة المائية، آلة التجهيز المسبق، آلة الطباعة الفلوسية، آلة طباعة البطاقات

3. آلة الطباعة السريعة: مقطورة ورق صغيرة، آلة تجويف رقمية، آلة ملزمة صغيرة.

4. آلة تصنيع منتجات الورق: آلة ملزمة، آلة صناديق ورقية، آلة أكياس ورقية، آلة فنجان ورقي، آلة تصنيع أغطية الغلاف



أسئلة شائعة
1. هل أنت مصنع أو شركة تجارية؟
نحن مصنع ومصنع حقيقيون، ونقوم بتجارة آلات ما بعد الطباعة وآلات التعبئة والتغليف منذ أكثر من 10 سنوات.
2. لماذا تختارنا؟
1. 30 عامًا من الخبرة في الإنتاج بجودة ممتازة. حصلت جميع آلاتنا على شهادة CE.
2. أسعار تنافسية في نفس مستوى جودة آلات قص الورق.
3. خدمة مريحة قبل البيع وبعد البيع. إذا كانت لديك أي أسئلة، فلا تتردد في الاتصال بنا.
3. ماذا عن مدة الدفع الخاصة بكم؟
بالنسبة لمعظم الطلبات، تكون شروط الدفع 30% T/T مقدماً قبل الإنتاج، ويجب دفع الرصيد الباقي بنسبة 70% قبل التسليم. وبالإضافة إلى ذلك، نقبل أيضًا طرق دفع أخرى مثل L/C وwestern union وما إلى ذلك.
4. ماذا عن مرحلة ما بعد الخدمة؟
1. عادةً، تكون معظم الآلات مستقرة وسهلة التشغيل؛ وبفضل مقاطع الفيديو والتعليمات، يمكنك التعرف بسرعة على كيفية التشغيل.
2. إذا لم تستطع الاستمرار في التشغيل، نقدم دورات تدريب عبر الإنترنت ووسائل تعليمية مصورة.
3. إذا كنت بحاجة إلى إرسال مهندس، يرجى الاتصال بنا للحصول على استشارة مفصلة.
5. كيف تقوم مصنعتك بمراقبة الجودة؟
الجودة هي روح شركتنا. يولي موظفونا أهمية كبيرة للتحكم في الجودة منذ البداية وحتى النهاية. وقد حصل مصنعنا على شهادة CE.
6. ماذا عن قطع الغيار؟
سنوفر جميع قطع الغيار من المصنع الأصلي
