آلة تصفيح الأفلام الورقية عالية السرعة أوتوماتيكية بالكامل HLMA-1050G

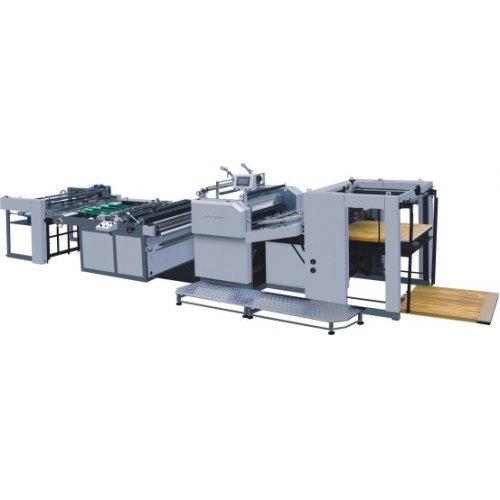

Configuration HLMA-1050G Fully Automatic High-speed Paper film Laminating Machine

·Overlapping regulator:Servo control and front lay to gurantee accuracy of paper overlapping.

·Smart constant temperature heating roller:Oil built-in heater,temperature measuring sensor and temperature controller make the temperature stable and constant.

·Film loader and unloader:Air expansion shaft with dividing rule make the loading,unloading and postioning of the film more accurate.The extension of film is controlled by pneumatic breaker.

·Anti-curve device:It can avoid paper curvature due to shrinkage of film and make the loading,unloading and postioning of the film more accurate.The extension of film is controlled by pneumatic breaker.

·Anti-curve device:It can avoid paper curvature due to shrinkage of film and make the paper smooth.It has the feature of easy adjust and no shaking.

·Electrical system:Scheider PLC inverter Omron and other intemational brand parts make the machine run smoothly,easy adjust.

High-speed Paper film Laminating Machine

Technical Parameters

Model HLMA-1050G

Max Paper Size 1050x1200mm

Min Paper Size 350x350mm

Paper Thickness 100-500g/m2

Laminating Speed 0-120m/min

Gross Power 30kw

Total Weight 5000kg

Overall Dimensions 11700x2200x1900mm
