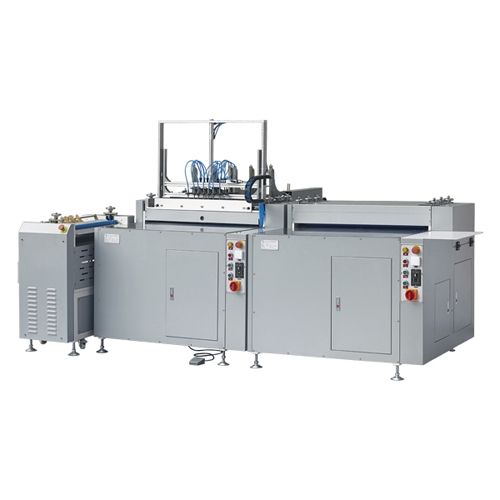

HL-GR-800SC Double stations Semi-automatic Book cover machine is mainly suitable for all kinds of hardcover book cases, folders, certificates, hardcover books The bookcase can be wrapped and flattened, and it can be wrapped on both sides at the same time. It can be done in two times. It is operated by one person. It is simple and occupies a small space.
This machine is suitable for the production of various notebooks, folders, hardcover books and other bookcases. When operating, first glue the cover, then put the glued cover on the workbench for positioning, pull the ash suction board frame to the fixed position and stick the cardboard to the cover, and then put the glued leather case into the machine for automatic operation. Flatten both sides of the bag, and flatten the sides of the bag twice to complete the production of a shell.
This machine is mainly aimed at making small batches of hardcover bookcases. It has the characteristics of small footprint, simple operation, and one-person operation. It is an ideal equipment for the production of post-printing packaging bookcases.
Main components configuration:
- The guide rails of the whole machine are imported from Taiwan brands; they have the characteristics of long running life, high precision, and good smooth performance.
- The machine adopts “Siemens SIEMENS” frequency conversion speed regulation and control.
3, Germany imported photoelectric switch automatic detection function.
- The whole body frame and shell are treated with high temperature baking paint; it has the characteristics of long service life and good rust resistance.
Detailed Data:
| 型号 | Model | HL-800SC |
| 电源 | Power Supply | 380V/50HZ 220V/60HZ |
| 整机功率 | Mainframe Power | 7.5kw |
| 工作速度 | Work Speed | 5-9Pcs/minute |
| 最大生产尺寸 | Case Size(max) | 760mm*450mm |
| 最小生产尺寸 | Case Size(min) | 140mm*140mm |
| 机器外形尺寸 | Machine Dimension(L*W*H) | 3000*1620*1600 |
| 机器重量 | Machine Weight | 1000kg |
Sample for Book cover making machine
Video
About us
Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.
In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.
we also can provide kinds of printing and packaging machine, such as
1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine
2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine
3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.
4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation
