HL-HT series Die cutting and creasing machine with Heat system is ideally suited for plastic sheet type packing materials, like PVC, PP, APET, PETG, etc. Some examples of products include transparent adhesive tape boxes, PP folders, and other office stationery.
Main Specification:
It is suppressed intercept of ordinary paper, corrugated board, plastic pieces, leather products of special equipment, suitable for printing, packaging decoration, plastic industries use.
The machine has compact structure, excellent manufacture, big pressure force, high precision and easy, safe and reliable operation, etc.
* airframe adopt high quality material integrally cast high strength.
* adopting three axis gear structure smooth running, pressure midi-hard AD, low-noise.
* monolithic electromagnetic clutch sensitive subreliabie.
* operation highly decorate reasonable pressure frame open Angle.
* electrical system according to IEC standard.
* leaflet pressure cut, continuous pressure cut, open delay three function (delay time range adjustable).
* safe protection system and reliable.

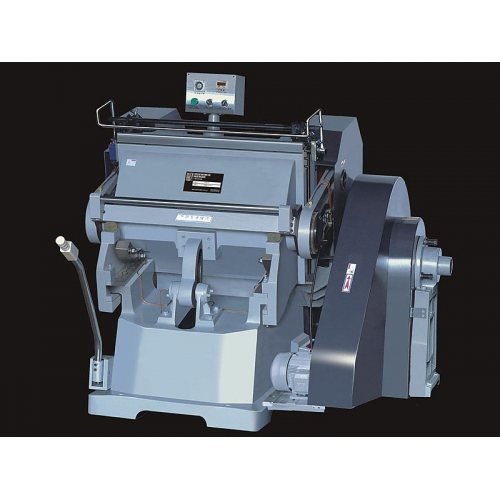

HL-HT series Die cutting and creasing machine with Heat system
Detailed data:
Model | ML750HT | ML930HT | ML1040HT | ML1100HT | ML1200HT |
Inner Chase size | 750*520mm | 930*670mm | 1040*720mm | 1100*800mm | 1200*820mm |
Speed strokes/min | 23±3 | 23±3 | 23±3 | 23±3 | 23±3 |
Max. Rule Length | <15m | <25m | <30m | <32m | <35m |
Motor Power | 2.2kw | 4kw | 4kw | 4kw | 4kw |
Electric Power Board | 3kw | 6kw | 6kw | 7.2kw | 7.2kw |
Machine Weight | 2000kg | 3000kg | 3500kg | 4500kg | 5000kg |
Overall size | 1450*1600*1450mm | 1650*1880*1700mm | 1750*200*16500mm | 1950*2150*1850mm | 2000*2100*1850mm |
