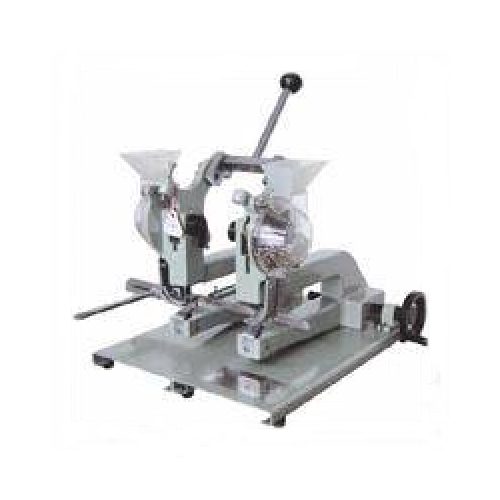

HL-JYS-2 JYSC-2 Manual Twin-Heads Eyelet Machine are widely used for manufacture the hanging rings of hand bag and box; The bookbinding and layout of confidential or normal files,The counterfeit-proof bookbinding of certificates, cards or commodity packing. Manufacture the air hole or lacelock of clothing, leather goods, mattress, bags and boxes.
Twin-Heads Eyelet Machine
Main Features:
Available for continuous eyelets feeding. Easy operation, Feeding eyelets, puncture and bending edge all finished in one move. After binding, eyelets edge is smooth and good looking; locking strength is strong, not easy to tear out
Detailed Data:
| Models | JYS3-2
(JYSC3-2) |
JYS4-2(JYSC4-2) | JYS5.5-2(JYSC5.5-2) |
| Binding Thickness(mm) | ≤3 | ≤3 | ≤3 |
| Eyelets Pore Diameter (mm) | 3 | 4 | 5.5 |
| Max stroke (mm) | 60
(165) |
60
(165) |
60
(165) |
| Volume capacity of eyelets(piece) | 1300 | 1200 | 900 |
| Adjustable punch range(mm) | 80-130 | 80-130 | 80-130 |
