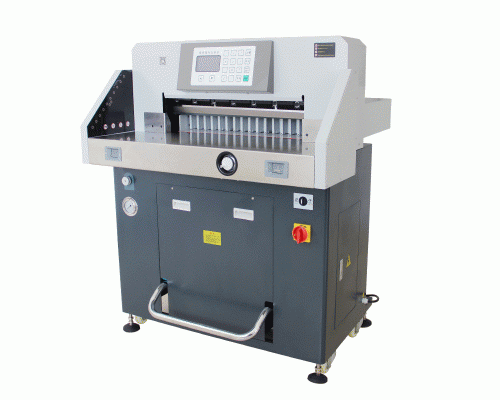

HL-QZ6700PX double hydraulic program paper cutting machine

HL-QZ6700PX double hydraulic program paper cutting machine Both the 5208PX and 6700PX are dual hydraulic and have adjustable hydraulic pressure. Not only the power is sufficient, but also the speed is fast, the noise is low, and the independent paper pressing pedal can press paper first, and then cut paper after confirmation. Double guide rail push paper system, infrared protection, laser indicati ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

HL-QZ6700PX double hydraulic program paper cutting machine

Both the 5208PX and 6700PX are dual hydraulic and have adjustable hydraulic pressure. Not only the power is sufficient, but also the speed is fast, the noise is low, and the independent paper pressing pedal can press paper first, and then cut paper after confirmation. Double guide rail push paper system, infrared protection, laser indicating positioning, high speed alloy steel oblique knife cutting, fault code display, PLC adjusting cutter depth and other functions. The appearance of the machine is simple and beautiful, the technology is exquisite, the fault is less, and it can easily cope with various work strengths.

1. LCD display, fault alarm, programmable CNC operation

2. Double rail design, computer correction size, computer adjustment cutter depth

3. Front and rear steel plate chrome plating platform

4. Pressing paper pedal function design, rear platform folding design

5. High-precision thickening tool holder ensures cutting precision and service life

6. Front infrared protection function, infrared cutting line design

7. It provides a strong impetus of improted main motor, and it is also in good quality of imported hydraulic valve parts

8. It is easy to cutting for the pasteboard.

9. External fine-tuning and conveniently

10.Process optimization level. Press paper, cutting time, and the calibration points of pushing paper size can be arbitrary set; It has self test function, fault code display and counting function program control can be set to 99 groups * 7 knife.

11.keep accuracy and steday for pushing paper.

12.Due to previous infrared safety protection design and back defend cover, it comply with CE standards.

hydraulic program paper cutting machine

Detailed Data:

Product Name5208PX6700PX
Cutting width520mm670mm
Min Cutting Width30mm30mm
Safety ProtectionInfrared OptoelectronicsInfrared Optoelectronics
Cutting Thickness8cm8cm
DisplayLiquid crystalLiquid crystal
Push PaperElectric-HydraulicElectric-Hydraulic
Clamp PaperElectric-HydraulicElectric-Hydraulic
Power2.2KW2.2KW
Voltage220V/110V 50HZ/60HZ220V/110V 50HZ/60HZ
Dimension96*116*135cm111*132*135cm
Weight350KG500KG
Warranty1 year1 year
