Haoly Machine

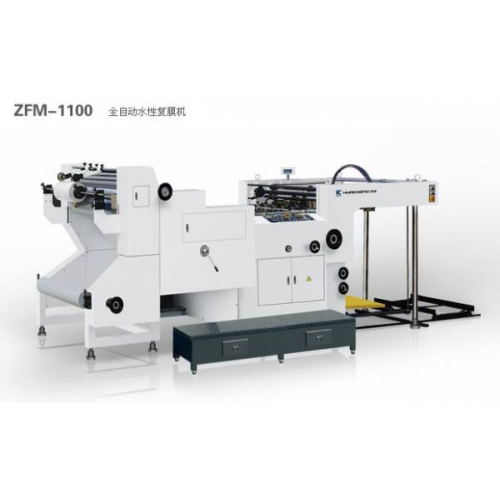

Usage: HL-ZFM-1100 Full Automatic water-soluble film laminating machine
This machine is new generation and more stablity, functioned with
automatic on paper absence, paper number counting, automatic film
slitting, rapid finished-product collecting, characterized in automatic
punching, high speed and energy save.
Features
1.Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically without machine stop
2.Automated operation is controlled by PLC system. Color touch screen simplifies the machine operation.
3.Transmission system equipped frequency convertor for continuously speedvariation.
Speed adjustment is more stable and accurate.
5.Automatic Counting,No Paper Protector and Glue Supply Automatic System
6.Dip coating saves glue, and ensures glue coating homogenized. And the thickness of glue coating is adjustable.
7.Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap
stable and regular, and paper feeding precision can be perfected effectively.
Detailed Data:
| Model | 1100 |
| Max. Paper Size | 1040×910mm |
| Min. Paper Size | 360×360mm |
| Paper Thickness | 100-400g/m2 |
| Speed | 0-90m/min |
| Total Power | 7kw |
| Weight | 4T |
