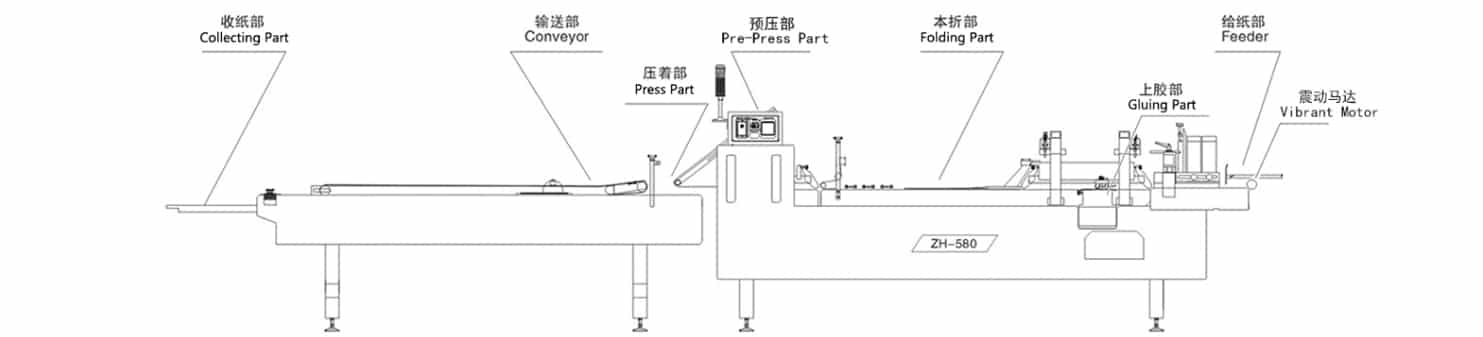

Machine Name: HL-ZH-650ZH-850ZH-1100 Automatic Straight Line Box Folder Gluer Machine
Description:
INTRODUCT
1.The whole machine steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable. 2. It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer. 3.Adopts PLC and frequency speed regulator. 4.It can be applied to duplex board and E/F/N corrugated cardboard. 5.The maximum speed is 300m/min, standard speed is 50000pc/hour.
TECHNICAL INDICATORS
1、Line speed：0-300m/min
2、Application of paper：180～700g/m2 Paperboard, E corrugated board
3、Paste box basic form：One side,two sides
4、Paper feeding：Automatic continuous feeding
5、Reverse mode：Fold from either side
6、Use adhesive：Cold glue
7、Power required：4.5kw, 3P 380V
8、weight：1800kg
9、Outer size：8000×1100×1400mm
10、Counting range：0-999999 No. with batching facility
TECHNICAL INDICATORS
TECHNICAL INDICATORS
| 技术参数 Technical Datum 单位：毫米（Unit: mm） | |||||||||
| 型号
Model |
盒类
Box Type |
A 最大
A Max |
A最小
A Min |
B 最大
B Max |
B最小
B Min |
C 最大
C Max |
C最小
C Min |
F最大
F Max |
F最小
F Min |

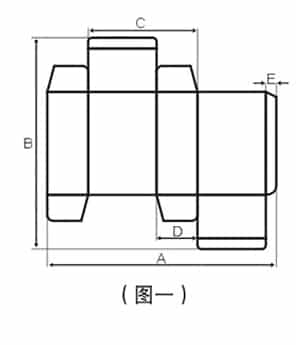

| ZH-650 | 边贴盒(图一)
Side Stickup Box |
650 | 100 | 550 | 60 | 280 | 45 | 30 | 8 |
| ZH-850 | 边贴盒(图一)
Side Stickup Box |
850 | 150 | 550 | 70 | 380 | 70 | 30 | 8 |
| ZH-1100 | 边贴盒(图一)
Side Stickup Box |
1100 | 170 | 600 | 80 | 480 | 80 | 30 | 10 |
Video
Box Folder Gluer Machine
