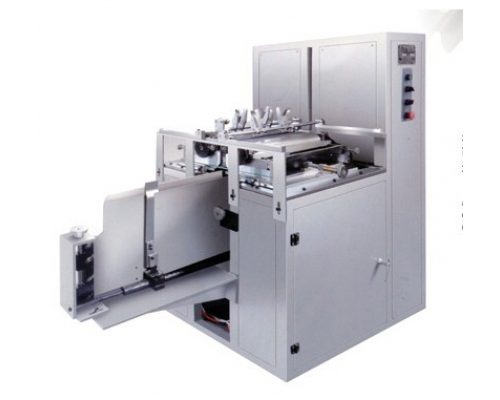

HLSK-B Large size Book Casing-in Machine

Book casing-in machine is the machine that glue bind ready book core together with the hard cover, one or two people can finish operation. The operator put books core and hard cover, and after starting the machine, it will automatically take the book core up by machine knife, after automatic rubber roller coating with glue on both sides, and continued to rise into book cover, the operator will tak ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

Book casing-in machine is the machine that glue bind ready book core together with the hard cover, one or two people can finish operation. The operator put books core and hard cover, and after starting the machine, it will automatically take the book core up by machine knife, after automatic rubber roller coating with glue on both sides, and continued to rise into book cover, the operator will take out the book, machine reset for the next work.

This machine is widely used for book, notebook and all hard cover book’s binding procedure, it is convenient for operation, short time for changing different sizes of book, smoothly gluing for two sides of book core, and stable for running, fit for large and small scale production.

Detailed Data:

ModelSK-ASK-B
Voltage380/50HZ380/50HZ
Power1.5kw1.5kw
Speed7-20 book/min7-12book/min
Max. Size360*270mm560*450mm
Max. Sizes353*270mm550*450mm
Min. Size90*60mm90*60mm
Max. Book Thickness60mm60mm
Dimension1800*1000*2100mm2000*1100*2100mm
Weight

540kg

600kg



Sample for Book Casing-in Machine
