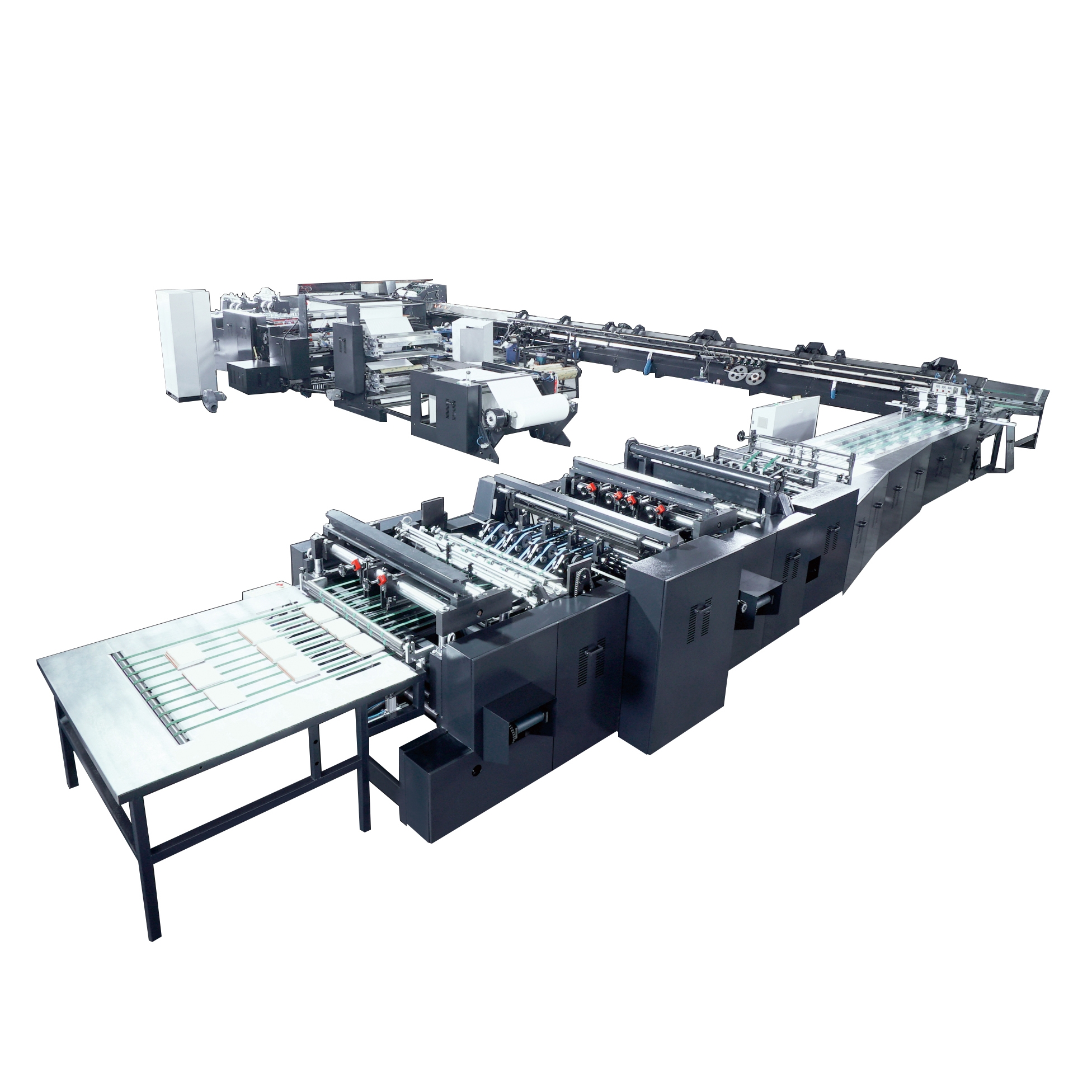

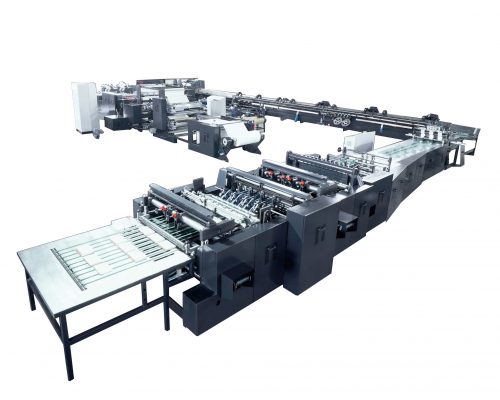

HL-1300 High speed flexographic Printing Cold Glue Exercise book back glue binding machine is the latest product independently developed by our factory. It can complete the whole process from printing to final sliting and counting collection.
Its automation level is at the leading domestic and international level. The production line consists of unwinding, deviation correction, printing, line splitting, sliting, folding, rotary slitting, servo several pages, servo horizontal conveying, adding the next title page, adding the cover and back cover,conveying into the back cover machine, side glue on the cover,inner sheet glue on the cover, drying, back strip on the cover, cutting, conveying, automatic gilding,lamination, book positioning, horizontal trimming, one-time cutting, book splitting and two-time cutting, Counting collection and other parts.
The production line is equipped with zero speed automatic paper holder, the printing department adopts
integral casting structure,and the printing gear adopts helical gear transmission, so that the production speed of the machine is faster and the product achieves higher printing quality. The page number size change and cutting size change of the inner core can be changed through synchronous gear and servo program-
controlled adjustment. For the production of A5,B5,A4 and other products, it is very practical, and is a rare production line with high cost performance.
Adopt cold glue process (green operation),notebook 180°Therefore, hl- 1300 can bring users very intuitive production efficiency and economic benefits.
Detailed Data:
| Specification/Model | HL-1120B |
| Reel width | 680-1120 mm |
| Printing speed | 30-300m/min |
| Max.EB.Making speed | 45 times/min |
| printing-cutting length | 300-760 mm |
| Cutting length | 250-450 mm |
| Counting and collecting | 6-50 sheets |
| Binging size | 125-225 mm |
| Total power | 32kw |
| Net weight | 17000/17500kg |
Sample for Automatic Exercise Book Making Machine
