Haoly Machine
This machine can complete the binding and folding of saddle stitches in one machine, and it can be connected with a front trimming knife to bind, fold and cut the finished product at one time.
1.The double-side rule is centered and the paper is patted, and the two sides are patted to the middle at the same time, the paper will not move to one side during the patting, resulting in inaccurate fold lines.
2.Stainless steel backing: reduce the friction of paper feeding and falling, U-shaped structure ensures the smoothness of paper feeding.
3.Anti-rebound design: When the paper is falling at a high speed, the machine assembly design can effectively ensure the accuracy of binding and folding.
4.Anti-chaotic design of wire reel: Effectively solve the problem of wire entanglement and no nailing
5.Open the window and cover: It is very convenient to watch the machine running during use. Easy to adjust.
6.Electric take-up tray: After finishing the binding, the take-up tray will automatically transfer and take up paper.
7.Auxiliary pressure roller: can be adjusted according to the thickness of the paper to ensure the accuracy of the folding line.
8.Concavo-convex folding roller: increase the friction, so that the folding effect is better.
9.43/6 nail head: easy to thread nails, adjustable nail angle length, suitable for paper of different thickness,
10.CNC automatically adjusts the size and position of the paper. According to the requirements of the paper, it can be adjusted by CNC without manual adjustment of the position.
Detailed Data:
| Model | HL-DZ A3+ |
| Max paper size | 330*480mm |
| Min paper size | 148.5*210mm |
| Inner paper thickness | 70-80gsm(0.08-0.01) |
| Cover paper thickness | 100-200gsm(0.1-0.2) |
| Minimum size of folding sheets/thickness | 25sheets/2.5mm |
| Binding distance | A4 two sets of inner diameter distance 60mm A3 two sets of inner diameter distance 130mm |
| Book folding accuracy | Accuracy of crease line ±0.5 |
| Nail head standard | standard nail head type 43/6 |
| Staple type | Wire nail 26# |
| Speed | A4 binding 2500 books/hour |
| Binding mode | Saddle stitch Single fold |
| Power | 300W |
| Voltage | AC220v-240V |
| Machine Weight | 100kg |
| Dimensions | 1380*575*1040mm |

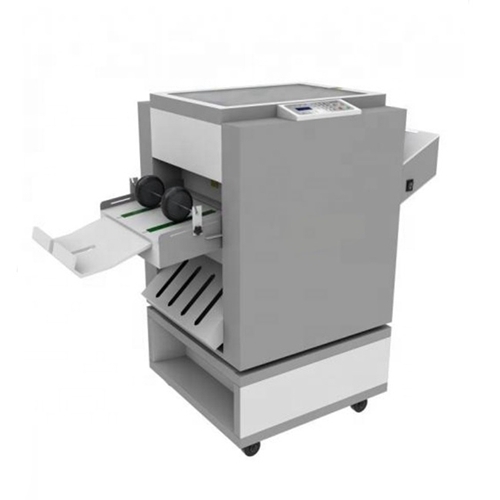

VIDEO of HL-DZ A3+ Automatic booklet maker / folding wire stitching machine
