Haoly Machine

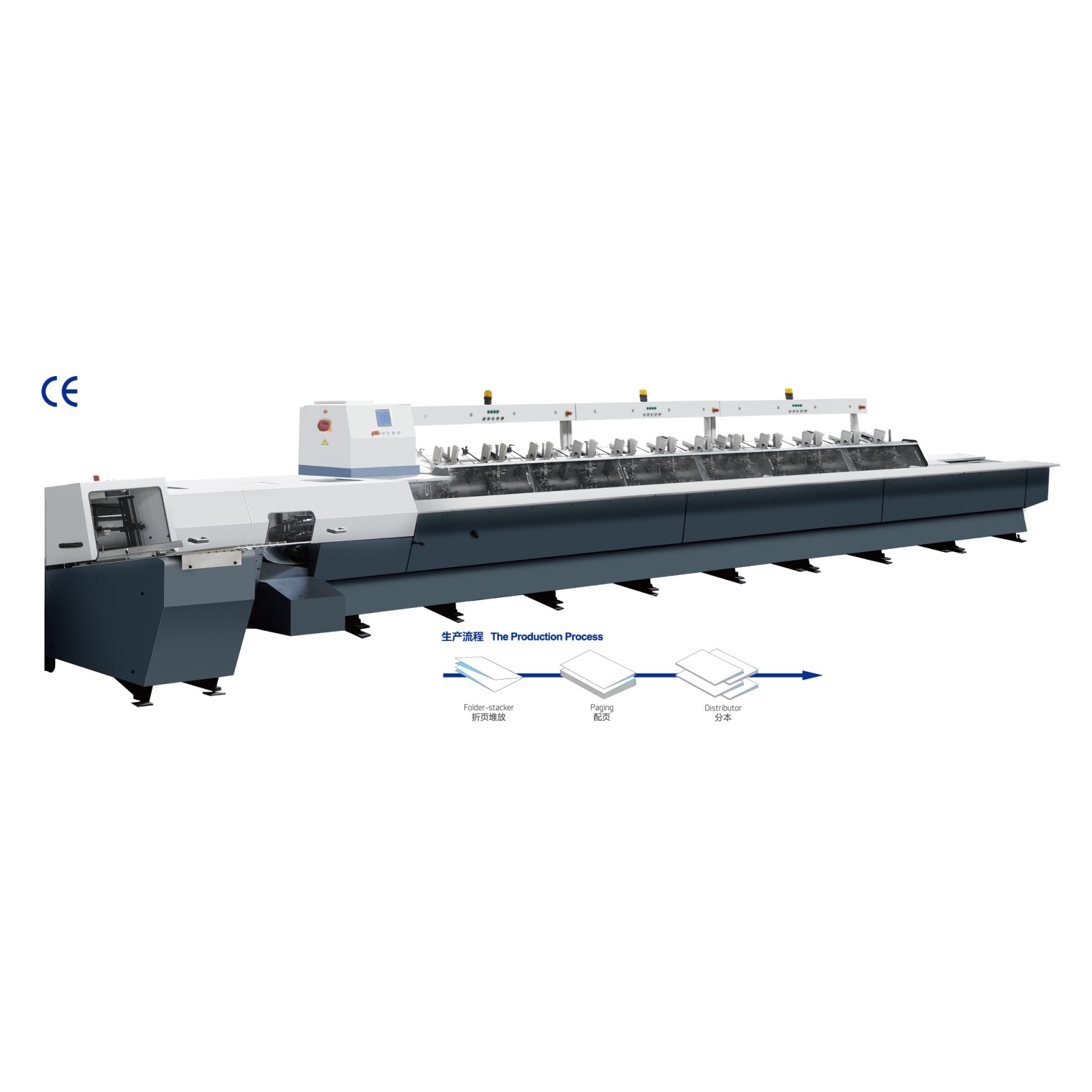

G460B Automatic sheet collator ensures high net output. The double gripper system and the vertical transport of signatures are combined in this machine with modern electronics and latest design. It can be used either as a stand-alone machine, or connected inline with TBT50/15D Shine Perfect Binder.
Mechanism(Specific features):
1.Touch screen
2.Change mechanism:1:1 or 1:2 speed
3.Signature gripping system
4.Hand feeding station Criss-cross delivery Reject gate
- Roller sheet collator
As to roller four collator, every three sheets form one set, and customers can purchase them according to needs.
- Detection device
Thickness detection device can be used to detect several sheets; Wrong-sheet detection can detect errors in principle;Empty-sheet detection device has the function of detecting missing sheets;Precise waste discharge
- Manual function
In case the number of collated sheets is more than the number of collating stands, the manual function can be used.
Detailed Data:
| Model
No. of station |
G460B/8
8 |
G460B/12
12 |
G460B/16 16 | G460B/20 20 | G460B/24 24 |
| Book size(a)
Book size(b) |
135x196mm
260x460mm |
||||
| In line speed(Max.) | 6000pcs/hour | ||||
| Stand-alone speed
Power required |
4800pcs/Hour 7.5 Kw |
9.7 Kw |
11.9 Kw |
14.1 Kw |
16.3 Kw |
| weight
Length of machine |
3,000 Kg
10,736 mm |
3,500Kg 13,022 mm | 4,000Kg 15,308 mm | 4,500Kg 17,594 mm | 5,000Kg 19,886 mm |
