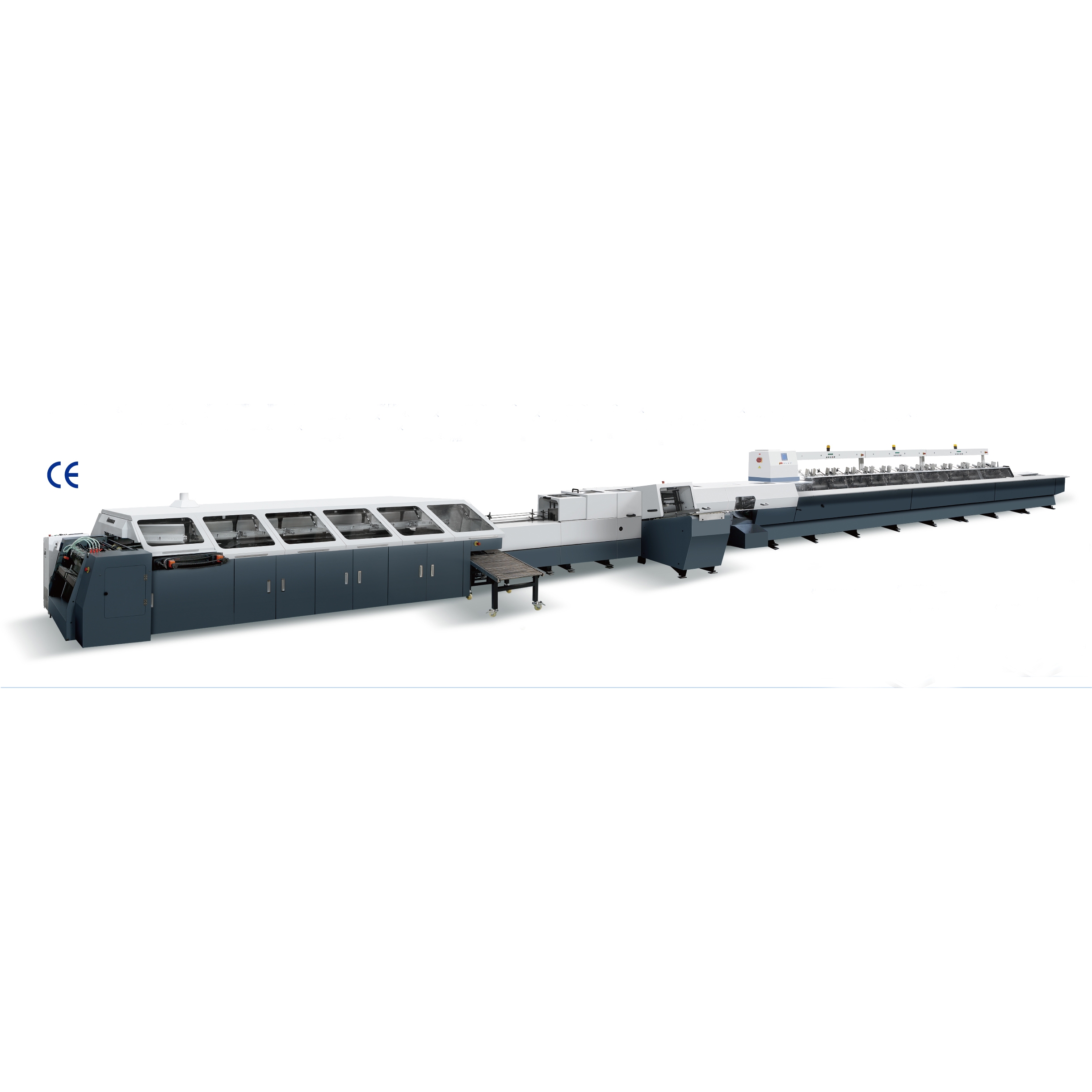

HL-RXJ0450/150 Full automatic gathering and perfect binding production line is self-developed and self-designed based on the requirements from domestic customers by introducing entirely new ideas and learning from foreign advanced technologies. It is composed of roller sheet collator, automatic waste-discharge mechanism, TBT50-15D Adhesive Binding & Covering Machine and book-outgoing mechanism, integrating the advantages of both adhesive binding line and traditional adhesive binding machine. It can com- plete sheet collating, book covering and glue binding in one lump, and is ideal automatic binding equipment for medium-sized printing and binding enterprises.
Digital display is used for the adjustment of side gluing wheel, milling and covering of this binding line, making the adjustment convenient and accurate; its covering adopts vertical structure, the indentation wheel has the function of fine tuning without stopping, and the horizontal book-collecting mechanism better protects book back shaping. This line has functions of detecting thickness, missing sheets and excessive sheets as well as automatic waste discharge & elim-inating, with reliable and stable performance and maximum speed up to 4500 copies/hour. The whole driving system adopts totally enclosed gear drive, ensuring high precision and stable driving. Additionally, this binding line is designed according to international safety standards and employs advanced technologies including frequency conversion motor, PLC programmable controller, photoelectric controller, touch screen operation and so on.
Automatic delivery mechanism
- Good book shaping, with covering thickness up to 2~50mm;
- High machine speed, with maximum speed up to 4500 copies/hour;
- Stable performance, with all electrical parts adopting internationally renowned brands and totally enclosed gear drive to ensure the precision and stability of driving;
- High degree of automation, completing sheet collating, book covering and glue binding in one lump, and having advanced detection devices such as thickness detection device and wrong sheet detection device for detecting wrong sheets, missing sheets and sheet errors in principle;
- Easy and accurate adjustment with digital display for the adjustment of milling, side-gluing wheel, cover paper feeding bench and covering manner, and the indentation wheel has the function of fine
tuning without stopping, making its adjustment easy and quick;
6.Most optimum cost performance.
Detailed Data:
| Book size(b)
Book size(a) |
装订最大幅面 装订最小幅面 | 380x265mm(单联/Single Unit)450x153mm(双联/Double) 165x110mm |
| Binding thickness
Maximum machine speed |
包本厚度
机械最高速度 |
2~50mm
4500Books/ Hour |
| Bookends number | 书夹数目 | 15 |
| Total machine power
Dimensions weight |
机器总功率
机器外型尺寸 机器重量 |
30Kw
22000x3000x1280mm 9000Kg |
