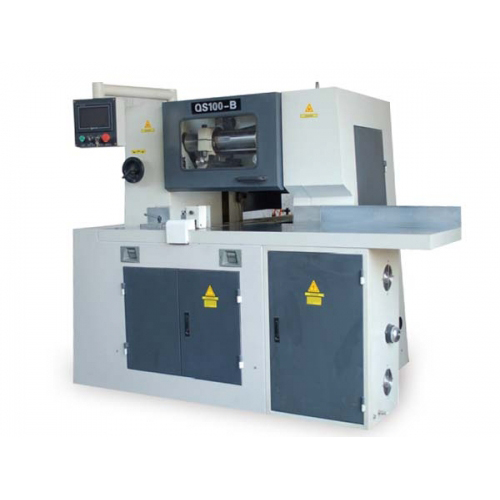

HL-QS100B type three-side trimmer for book is as follow:
1. put the book by hand, automatic clamping books;
2. When no book, automatically stops cutting;
3. using monolithic large torque electromagnetic clutch , braking performance is good, safety and high performance;
4. have double cutting mechanism;
5. automatically supply quantitative oil for lubrication points;
6. control system adopts frequency control;
7. Have fault display, equipped with a variety of security devices to ensure production safety;
Detailed Data:
型号 | QS100B | |
最大裁切尺寸(mm/inch) | the largest crop size (mm/inch) | 380*300 |
最小裁切尺寸(mm/inch) | the smallest crop size(mm/inch) | 80*80 |
最大裁切高度(mm/inch) | ahigh degree of the largest crop (mm/inch) | 100 |
最低裁切高度(mm/inch) | the minmum height books (mm/inch) | 8 |
最小单体裁切高度(mm/inch) | min.single book ghickness (mm/inch) | 5 |
最高裁切速度(times/inch) | the maximum cutting speed (times/inch) | 25 |
主电机功率(kw) | the main electrical power (kw) | 3 |
外形尺寸(mm/inch) | dimensions(length*width*high) mm/inch | 1940*2170*1600 |
机器净重(kg/ibs) | machine net weight (kg/bs) | 2200 |
规格和标准设备如有更改,恕不另行通知 if the datum have been changed ,just search for them |
VIDEO OF HL-QS100B type three-side trimmer for book
About us
Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.
In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.
we also can provide kinds of printing and packaging machine, such as
1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine
2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine
3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.
4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation
