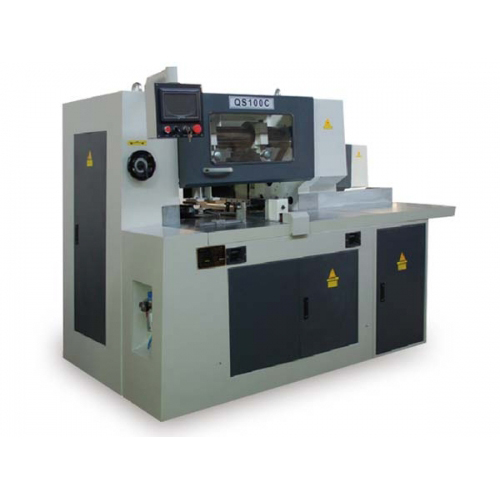

HL-QS100C Three side book cutting Machine

HL-QS100C Three side book cutting Machine1. put the book by hand, automatic clamping books;2. When no book, automatically stops cutting;3. using monolithic large torque electromagnetic clutch , braking performance is good, safety and high performance;4. have double cutting mechanism;5. automatically supply quantitative oil for lubrication points;6. control system adopts frequency ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

HL-QS100C Three side book cutting Machine

  • 1. put the book by hand, automatic clamping books;
  • 2. When no book, automatically stops cutting;
  • 3. using monolithic large torque electromagnetic clutch , braking performance is good, safety and high performance;
  • 4. have double cutting mechanism;
  • 5. automatically supply quantitative oil for lubrication points;
  • 6. control system adopts frequency control;
  • 7. Have fault display, equipped with a variety of security devices to ensure production safety;

Detailed Data:

总技术数据
型号QS100C
最大裁切尺寸(mm/inch)the largest crop size (mm/inch)420*300
最小裁切尺寸(mm/inch)the smallest crop size(mm/inch)80*80
最大裁切高度(mm/inch)ahigh degree of the largest crop (mm/inch)100
最低裁切高度(mm/inch)the minmum height books (mm/inch)8
最小单体裁切高度(mm/inch)min.single book ghickness (mm/inch)5
最高裁切速度(times/inch)the maximum cutting speed (times/inch)20-28
主电机功率(kw)the main electrical power (kw)4
外形尺寸(mm/inch)dimensions(length*width*high) mm/inch2300*2050*1676
机器净重(kg/ibs)machine net weight (kg/bs)3000
规格和标准设备如有更改,恕不另行通知 if the datum have been changed ,just search for them
