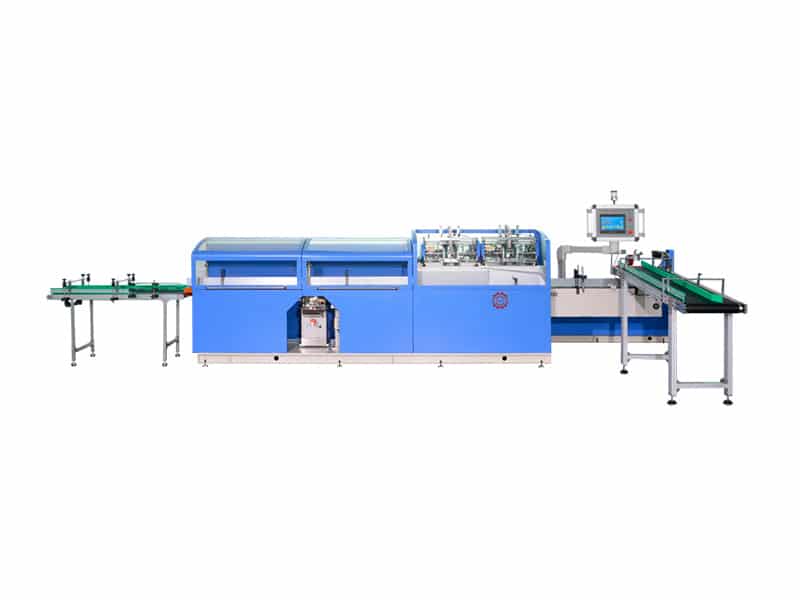

Machine Name: HL-SNY460 Automatic Double-sided Endpaper Gluing Machine
Description:
Product composition：
The AUSCP SNY460 Automatic Double-sided Endpaper Gluing Machine is designed to automatically apply glue to the already sewn book blocks by placing it in the conveying mechanism, into which it travels through automatic processes. It proceeds to the adhesive coating mechanism and enters the automatic paper suction mechanism where the front and back pages are respectively joined to the front and back of the book block. The adhesion is firm and reliable, making it an ideal choice for book and magazine enterprises. It can be linked with a hardcover book block gluing production line to reduce required labourers by 2-3 people.
Functions & features：
- The machine is designed in an integrated approach, simply place book blocks on the conveyor belt, end sheets will be pasted effortlessly.
● Glued is continuously applied in multiple cycles to avoid dry glue and optimize the pasting
● The coloured UI interface comes in China and Engllish, which enables smooth template switching and makes it user-friendly.；
● The transmission parts and electrical components are made of high quality imported materials, making them durable and valuable price wise.
● It can be integrated with any book spine gluing production lines to reduce costs and improve production efficiency.
Technical Data:
|
最高机械速度
Max. operating spee
|
60本/分钟
60 signatures per minute |
总功率
Power consumption
|
4.5kw |
|
最大幅度
Max size
|
460x210mm | 电压要求
Standard voltage |
380V/ 220V 50Hz |
|
最小幅度
Min size
|
148x105mm | 空气消耗量（外部供应）
Air consumption (external supply) |
0.35 m3 /分钟
0.35 m3 /min |
|
对折页纸厚度
Thickness of folded sheet |
60-150g | 整机重量
Net weight |
2000Kg |
|
单张纸厚度
Thickness of single sheet
|
120-300g |
机械外型尺寸（长 x 宽x 高）
Dimensions (length x width x height) |
7600x2700x1150mm |
|
书本厚度
Book thickness
|
4-60mm | ||
|
L H S
Max. size 210 460 60mm
Min. size 105 148 4mm
|
AUSCP NY460 | ||
