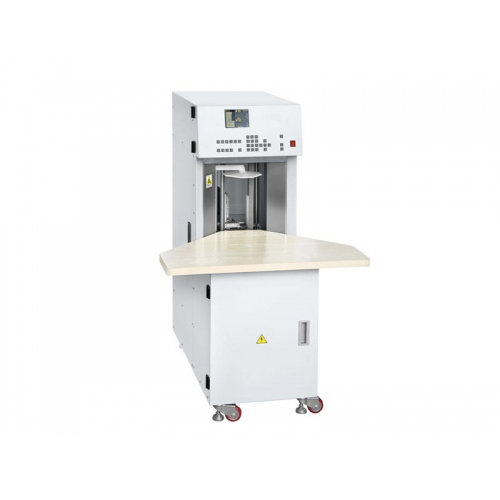

HL-SZ01 small Paper counting machine

Description: HL-SZ01 small Paper counting machine 1.The paper counting machine is a high-tech product we committed to develop,with superior performance,it has a 7-inch color screen computer and servo motor control. 2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously. 3.The paper counting machine is rich in featu ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

Description:

HL-SZ01 small Paper counting machine 1.The paper counting machine is a high-tech product we committed to develop,with superior performance,it has a 7-inch color screen computer and servo motor control.

2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.

3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;

The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;

The specified number counting function is for sorting out the required number of paper from the paper-pile

4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.

5、It has a paper label fast changing structure

HL-SZ01 small Paper counting machine

Detailed Data:

paper thickness range22~230kg(Carbon paper,offset printing paper, coated paper,etc.)
paper sizeMin.100X150mm、Max 546X788mm
paper stacking height300mm(Max)
Power Supply/voltageAC220±10V、50Hz
motor0.4KW
Collecting table width600X600mm
Collecting table width height760mm
machine size900(W)X1080(L)X1500(H)
machine weight230kg
label for paper in pileWidth 6mm、Length 100m
consumed power ;600W





America ARM Core CPU
Frequency:400MHZ
SDRAM:SAMSUNG DDR2,64MB
FLASH ROM:SAMSUNG 64MB
Listepping  moto china
TFT:Foxconn 5.6 Inch
KEYPAD:OMRON
Paper Count Motor:FUJI Servo Motor
Air Pump Motor:china\korea
IF Sensor:OMRON
Hall Sensor:OMRON
Switch Power:Taiwan Meanwell
Cable:America TE
