HL-SZ02 large Paper counting machine 1.The paper counting machine is a high-tech product we committed to develop,with superior performance,it has a 7-inch color screen computer and servo motor control.
2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.
3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile
4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
5、It has a paper label fast changing structure

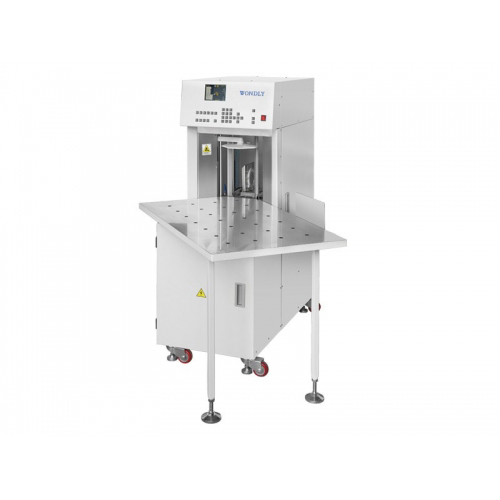

HL-SZ02 large Paper counting machine
Detailed Data:
| paper thickness range | 30～210kg（Carbon paper,offset printing paper, coated paper,etc.） |
| paper size | Min.100X150mm、Max 600X600mm |
| paper stacking height | 300mm（Max） |
| Power Supply/voltage | AC220±10V、50Hz |
| motor | 0.4KW |
| Collecting table width | 600X600mm |
| Collecting table width height | 760mm |
| machine size | 900（W）X1080（L）X1500（H） |
| machine weight | 230kg |
| label for paper in pile | Width 6mm、Length 100m |
| consumed power ; | 600W |
| America ARM Core CPU Frequency：400MHZ |
| SDRAM：SAMSUNG DDR2，64MB |
| FLASH ROM：SAMSUNG 64MB |
| Listepping moto china |
| TFT：Foxconn 5.6 Inch |
| KEYPAD：OMRON |
| Paper Count Motor：FUJI Servo Motor |
| Air Pump Motor：china\korea |
| IF Sensor：OMRON |
| Hall Sensor：OMRON |
| Switch Power：Taiwan Meanwell |
| Cable：America TE |
VIDEO of HL-SZ02 large Paper counting machine
