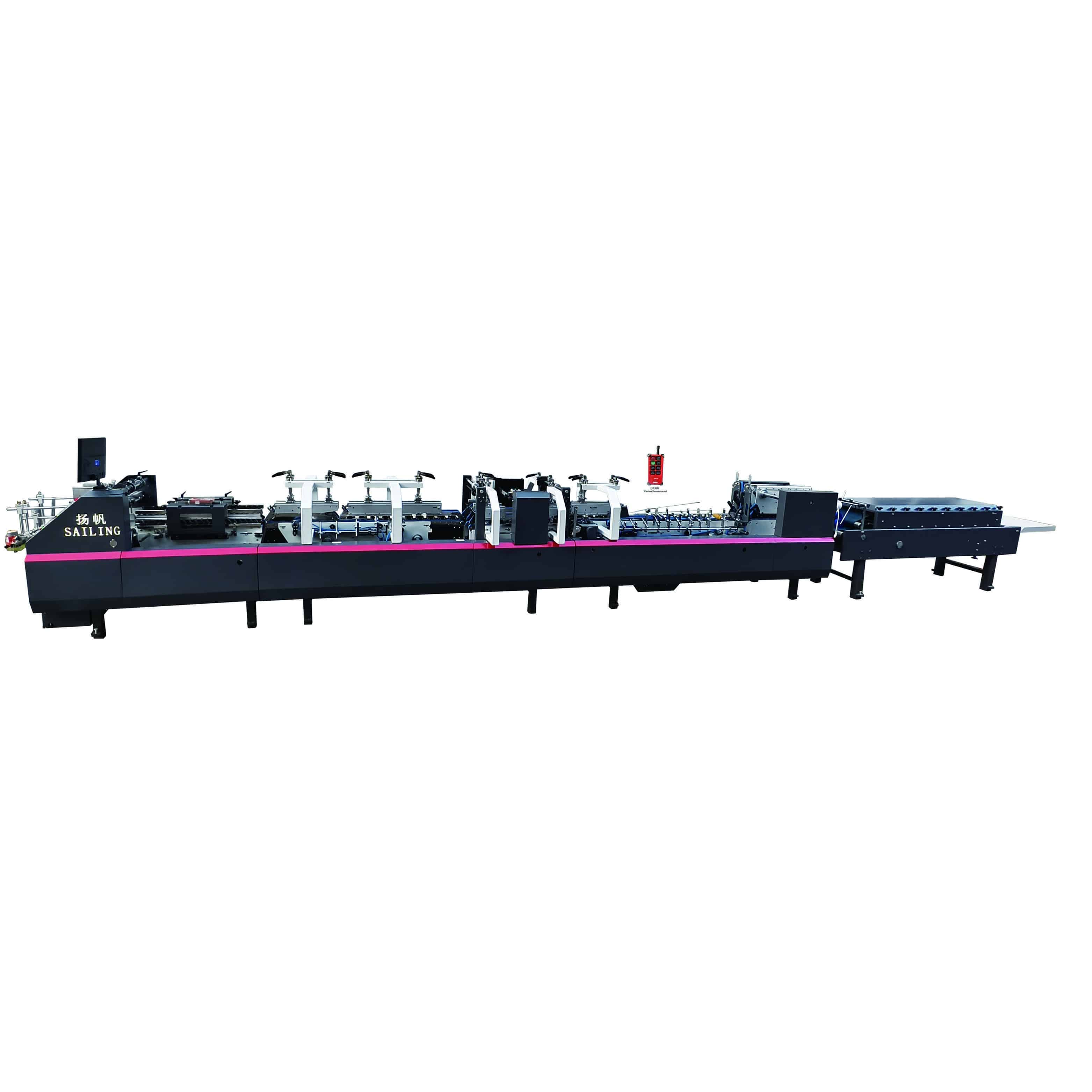

HL-ZH-600YF700YF900YF Automatic Folder Gluer with Crash Lock Bottom

Machine Name: HL-ZH-600YF700YF900YF Automatic Folder Gluer with Crash Lock Bottom

INTRODUCT

1.The whole machine’s steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable. 2.It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer. 3.Adopts PLC and frequency speed regulator. 4.New human-oriented design, easier operation, decreased test run time, better university, various complicated box making. 5.Can be applied to crash lock box, pre-fold box and straight line box.

TECHNICAL INDICATORS

1、Line speed：0~300m/min continuous tunable
2、Application of paper：210~700g/m2 paperboard
3、Paste box basic form：Either side folds, either sides pre-fold, and crash lock bottom
4、Paper feeding：Automatic continuous feeding
5、Reverse mode：One or two, four fold 180 degrees, three fold 135 degrees and Crash lock bottom
6、Use adhesive：Cold glue
7、Power required：AC380V，8kw
8、weight：3000kg
9、Outer size：12000×1000×1400mm
10、Counting range：0~999999 (automatic counting)

TECHNICAL INDICATORS

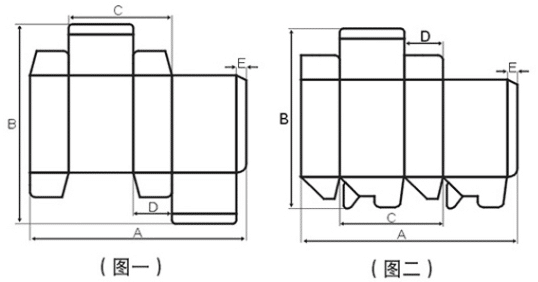

技术参数 Technical Datum 单位：毫米（Unit: mm）
型号 Model	盒类 Box Type	A 最大 A Max	A最小 A Min	B 最大 B Max	B最小 B Min	C 最大 C Max	C最小 C Min	D最小 D Min	E最小 A Min
ZH-600YF	边贴盒（图一） Side Stickup Box （I）	600	110	500	65	270	50	7	6
	预折盒（图一） Pre-folding Box(I)	600	160	500	65	270	75	10	6
	勾底盒（图二） Lock Bottom Box(II)	600	160	500	65	270	80	40	6
ZH-700YF	边贴盒（图一） Side Stickup Box （I）	700	110	500	65	320	50	7	6
	预折盒（图一） Pre-folding Box(I)	700	160	500	65	320	75	10	6
	勾底盒（图二） Lock Bottom Box(II)	700	160	500	65	320	80	50	6
ZH-900YF	边贴盒（图一） Side Stickup Box （I）	900	130	600	80	370	60	10	8
	预折盒（图一） Pre-folding Box(I)	900	180	600	80	370	90	15	8
	勾底盒（图二） Lock Bottom Box(II)	900	180	600	80	370	90	60	8
