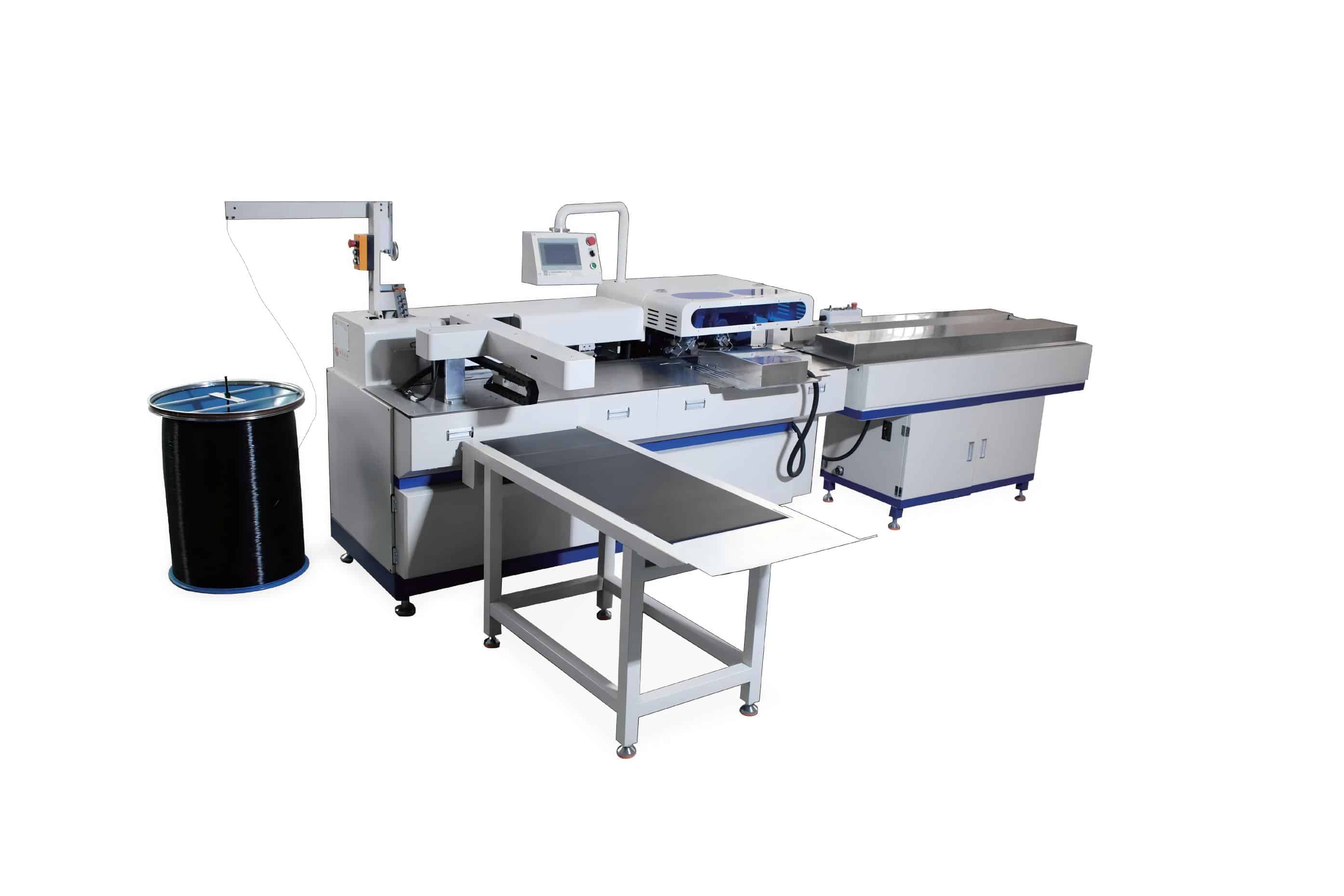

Machine Name: HL-400PBF Automatic Punching, Forming Single Spiral and Binding Machine
Description:
Automatic Punching, Forming Single Spiral and Binding Machine, researched and developed for the first time in China. The machine has obtained more than ten invention and utility patents, improving production efficiency by over 60% compared with traditional processes. It can efficiently produce notebooks, sketchbooks, drawing books, and other loose-leaf items. The machine automatically performs book feeding, punching, alignment, spiral forming, binding, and book collection.
- Only 1-2 general operators are required to operate the machine.
- High-quality punching mold, capable of punching 3–6mm thick paper at one time, with an automatic oiling system. Each mold has double-sided dual specifications, extending the lifespan 3–5 times longer than standard molds.
- Mould size change and pin removal require no screws — completed within one minute.
- Automatic hole positioning function.
- Automatic malfunction reminder function.
Detailed Data:
| 中文参数 | 数据 | English Parameter | Data |
| 机器型号 | HB-400PBF | Model | HB-400PBF |
| 工作速度 | 800-1800本/每小时 | Work speed | 800–1800 books/hour |
| 单次打孔厚度 | 1–6mm | Thickness of punch for one time | 1–6mm |
| 最大打孔厚度 | 13mm（特别产品16mm） | Max punching thickness | 13mm (special product: 16mm) |
| 每本最多打孔次数 | 5次 | Max punching times per book | 5 times |
| 最大产品尺寸 | 400mm(装订)×420mm | Max book size | 400mm (binding side) × 420mm |
| 最小产品尺寸 | 70mm(装订)×105mm | Min book size | 70mm (binding side) × 105mm |
| 最大送料尺寸 | 400mm×400mm | Max feed size | 400mm × 400mm |
| 装订线圈直径 | 1/4″–5/8″（可定制3/4″） | Spiral size | 1/4″–5/8″ (customizable to 3/4″) |
| 线圈齿距 | 4:1, 3:1, 6mm, 8mm（可定制） | Pitch | 4:1, 3:1, 6mm, 8mm (customizable) |
| 装订纸张宽度 | 70–400mm | Binding width | 70–400mm |
| 空气压缩机（客户自备） | 3KW | Air compressor (customer provide) | 3KW |
| 机台尺寸（长×宽×高） | 4000×2500×1600mm | Machine size (L×W×H) | 4000×2500×1600mm |
| 电源 | 380V/50–60Hz/6KW | Power | 380V/50–60Hz/6KW |
| 气压 | 0.7–0.8Mpa | Air pressure | 0.7–0.8Mpa |
| 整机净重 | 1500kg | Weight | 1500kg |

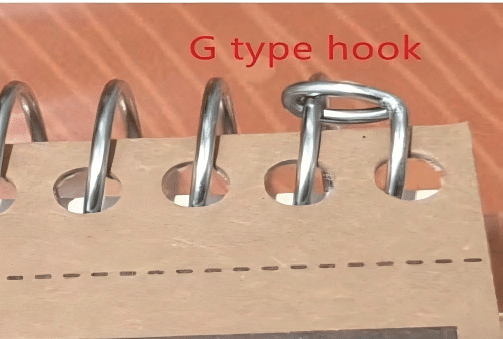

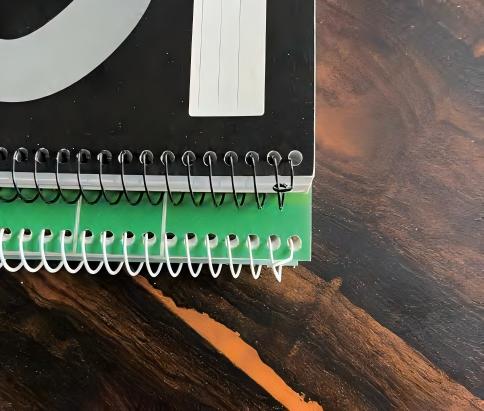

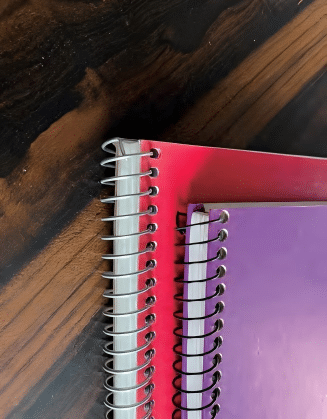

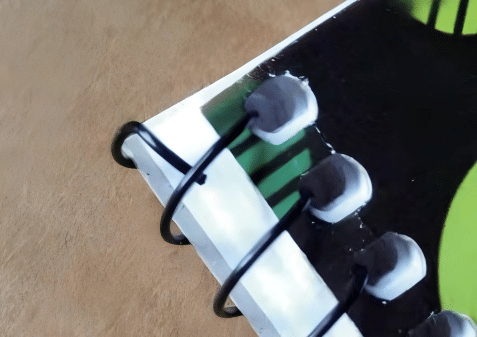

Samples:
