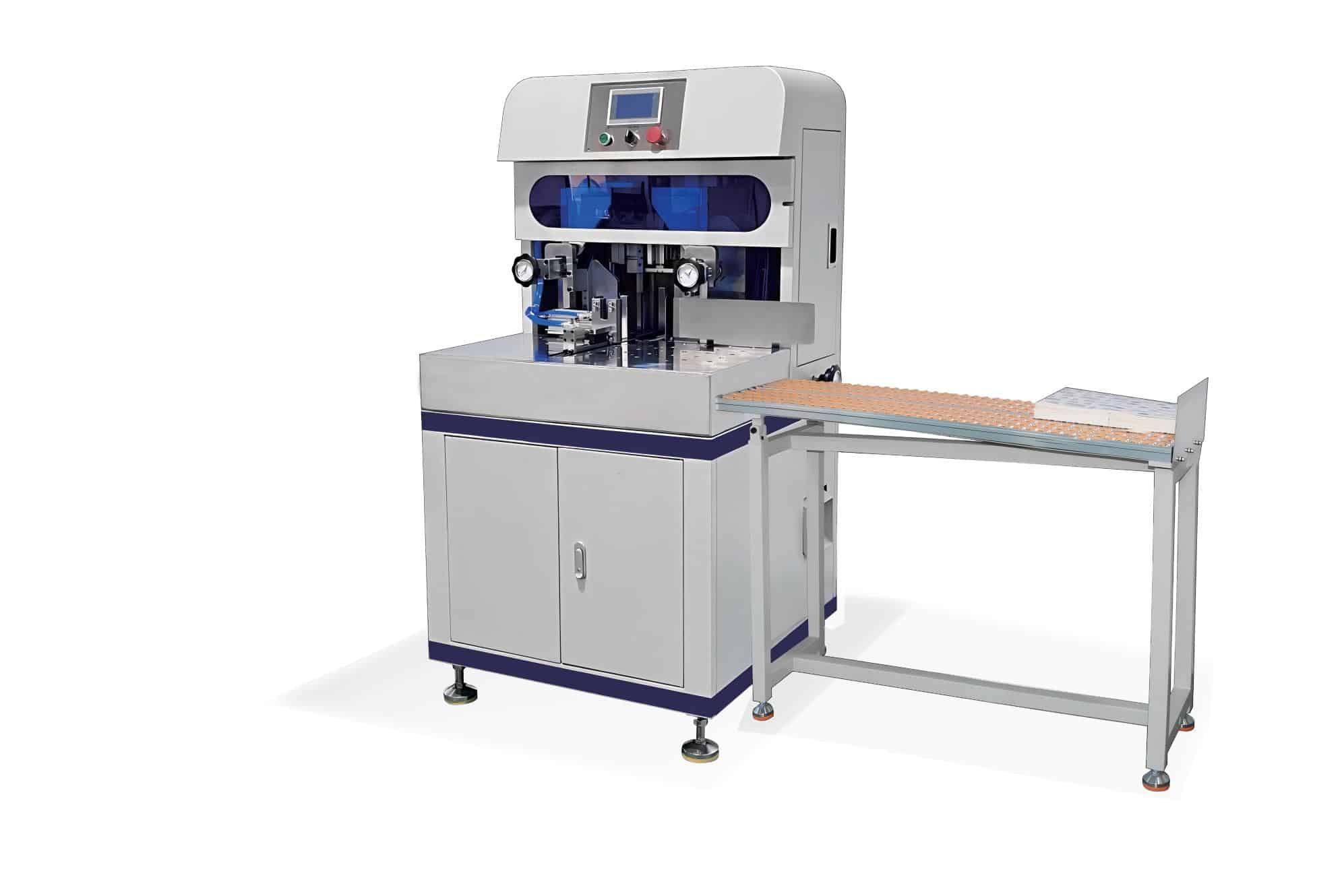

Machine Name: HL-ZDYJ4 Intelligent four corner cutting machine
Description:
This machine is one machine for cutting the paper,Apply to the need to cut four round- ed corners of the product. The machine has the functions which can alignment automatically, cut four corner automatically, book return automatically. Our machine also have many items of invention patent certificate and practical patent certificate, which improve the efficiency four times than the normal machine. It is one machine which can save the produce cost, this machine can cut card, label,name card ,books and so on. The machine is control by touch screen, which make all process more simple and easy to operate.
The frame is consist of :frame, machine protective cover, feed table, waste material funnel, cylinder and slide.
The principle: put the book to feed parts by manual, the cylin- der will send the book to the cut position. After cutting, the cylinder will push the book away.
Detailed Data:
| 技术参数（Technical Parameter） | |
| 型号 Model | HB-ZNYJ4 |
| 速度 Working speed | 15-25次/分钟 |
| 最大产品尺寸 Max book width | 300mm ×215mm |
| 最小产品尺寸 Min book width | 100mm × 100mm |
| 最大冲切高度 Max cutting height | 100mm |
| 气压 Air pressure | 0.5-0.8Mpa |
| 机器尺寸 Machine Dimensio n | 110*985*500mm（主机） |
| 电源/总功率 Power | 220V/0.5kw |
| 净重 Weight | 480kg |

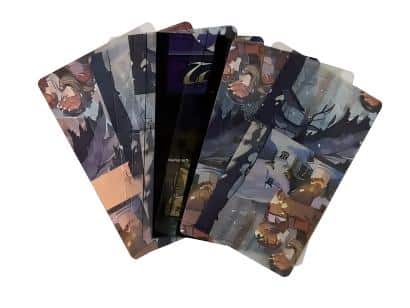

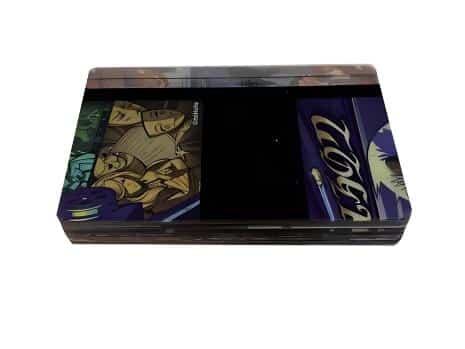

Samples:
