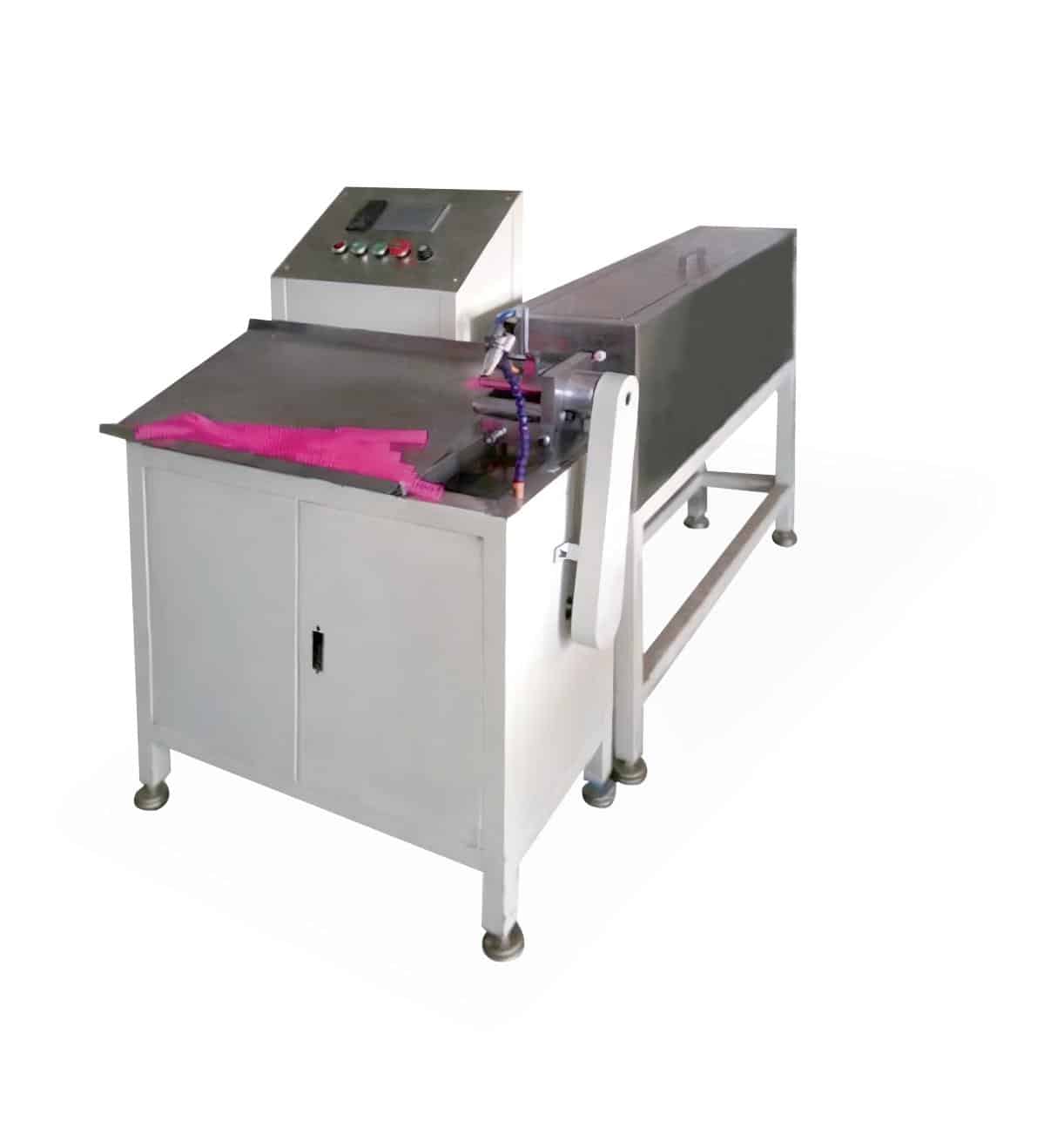

Machine Name: HL-6000 Plastic Spiral Forming Machine
Description:
Advantages:
- Through the water tank’s heating,the PVC,PET,PP material wire would form with the mould,then cooling by the cold water.
- Auto feeding the material,make sure it is steady on the process of heating and forming.
- Use the double stainless steel temperature-holder box,more power-saving and beautiful .
- Touch-screen makes it accurate and convenient to set and operate.
- By changing the mould could make different size of wire.
- Max.forming speed:1200pcs/min.
Detailed Data:
| 技术参数（Technical data） | |
| 节距为3:1时双线圈直径 | 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 9/16″5/8″ |
| Pitch 3:1 double wired lameter | 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 9/16″5/8″ |
| 线圈速度 | 400-700齿/分钟 |
| Wire roll speed | 400-700Ring/min |
| 齿距2:1时双线圈直径 | 5/8″ 3/4″ 7/8″ 1″ |
| Pitch 2:1 double wire diameter | 5/8″ 3/4″ 7/8″ 1″ |
| 齿距速度 | 300-500环/分钟 |
| Pitch moving speed | 300-500Ring/min |
| 外型尺寸 | 4.5 × 16 × 1.8M(包括收卷机) |
| Machine dimension | 4.5 × 16 × 1.8M(including winding machine) |
| 成型机电压及功率 | 220V/1Ph/50Hz/0.75KW |
| Power requirement for the main machine | 220V/1Ph/50Hz/0.75KW |
| 收卷机电压及功率 | 220V/1Ph/50Hz/0.75KW |
| Power requirement for the roll collector | 220V/1Ph/50Hz/0.75KW |
| 重量 | 390kg |
| Weight | 390kg |

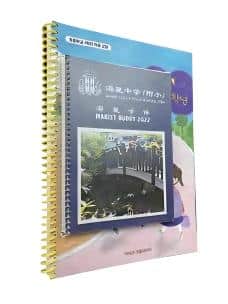

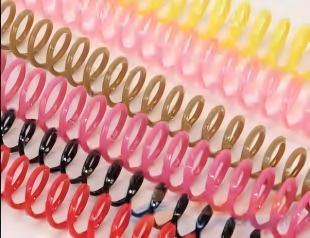

Samples:
