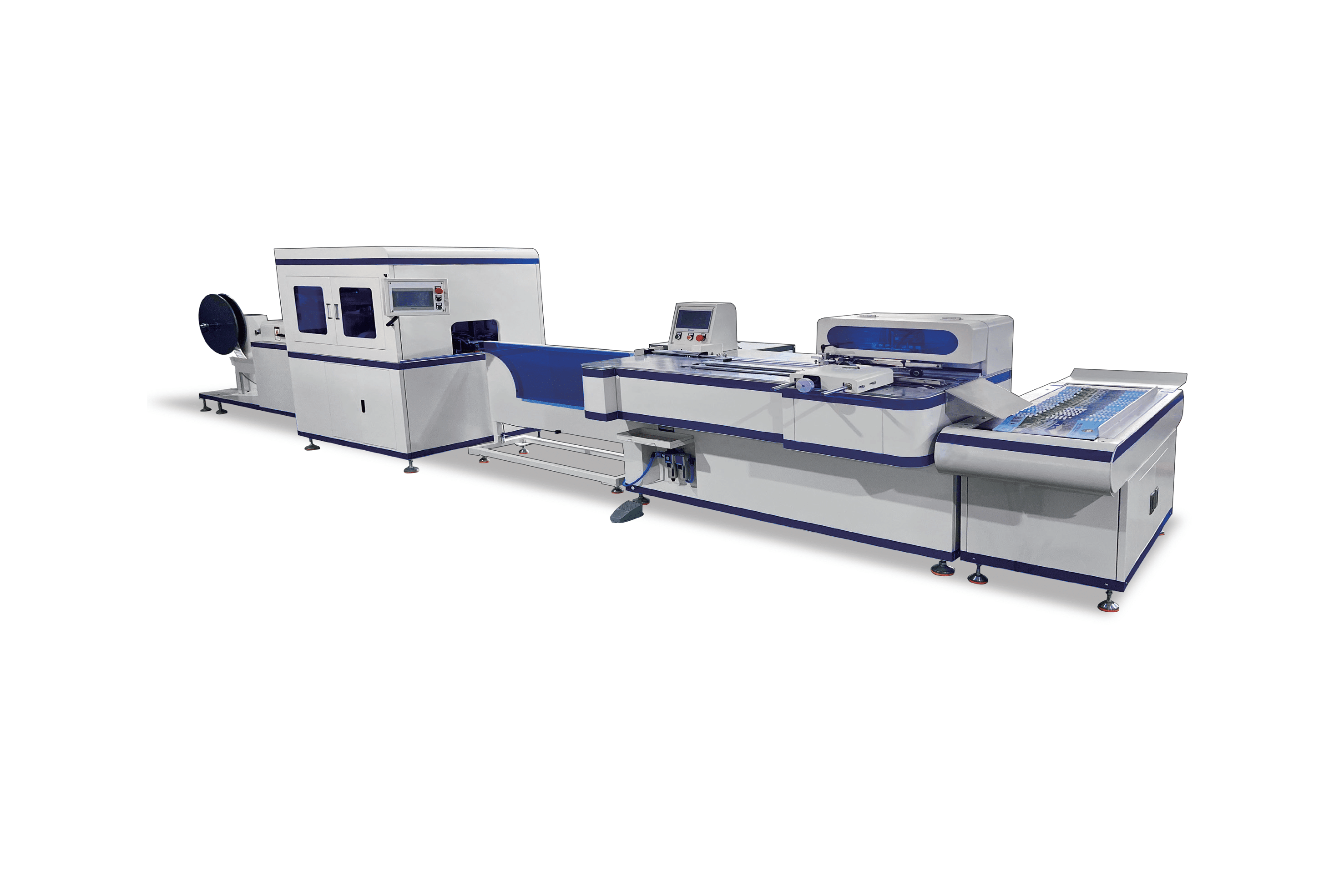

Machine Name: HL-402Z Paper wire forming and binding machine
Description:
This machine is paper wire binding machine, it can feed paper wire automatically, cutting wire automatically, feed book by hand, binding automatically. The machine can match with the paper wire forming machine, which the process of forming and binding in one automatic line. Our machine also have many items of invention patent certificate and practical patent certificate, which will be more environmental than the traditional metal wire and also plastic wire, it is a new type of binding machine. This machine is mainly for calendar and sketch book and so on. The machine is control by touch screen, which make all process more simple and easy to operate.
Detailed Data:
| 参数 (Parameter) | HB-ZXQ | 参数 (Parameter) | HB-402Z |
| 纸线线径 (Wire diameter) | 1.3–5mm | 速度 (Speed) | 300–1200本/小时 |
| 纸板宽度 (Width of paperboard) | 50–600mm | 最大书本尺寸 (Max book size) | 360mm×420mm |
| 纸板厚度 (Thickness of paperboard) | 1–5mm | 最小书本尺寸 (Min book size) | 50mm×120mm |
| 纸线脉冲 (Binding loops pulse) | 0–18000 | 线圈规格 (Size of spiral) | 1/4″–9/16″ |
| 走线距离 (Wire in distance) | 100–1800（无进排） | 超声波功率 (Ultrasonic power) | 0.8KW (6台) |
| 产量 (Quantity) | 100–200米/小时 | 功率 (Power) | 3.85KW |
| 功率 (Power) | 10.5KW | 气压 (Air pressure) | 0.5–0.8Mpa |
| 外形尺寸 (Dimension) | 3400×1400×1600mm | 外形尺寸 (Dimension) | 4900×940×1200mm |
| 重量 (Weight) | 600kg | 重量 (Weight) | 380kg |

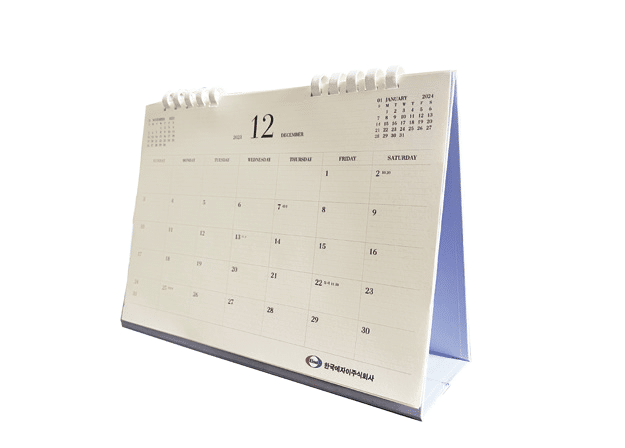

SAMPLES:
VIDEO OF HL-402Z Paper wire forming and binding machine
