Machine Name: HL-QJ-340 Automatic double corner cutting machine （can connect with three-knife trimmer）
Description:
The advantage of the machine:
1、The machine can connect with three-knife cutting machine,it will just need receive the book from the receive belt of three-knife cutting machine,can save 3-4 workers than traditional,at the same time it can also save the space for half-product of book which are going to wait to cut.
2、The machine use the double servo cylinder and PLC control,can cut the corner more accurate and more stable output.
3、Touch screen,easy to adjust,easy to change the cutter.This machine use the special high-accuracy cutter,which use the technology of chromium steel for bottom cutter,it will not have the situation of bottom paper can not cut well.
Working process:
1、Connect with the received belt of the three-knife cutting machine or through a feed belt to feed the book.
2、The book will move forward to cutter position through the belt.
3、The cutting position will sensor the book,then the back push parts will push the book tightly,then the left and right cutter will move to the middle position to push the book tightly,to make sure all four side of the book has been push tightly,then the double cutter will cut the book at the same time.after that the cutter will back to the origin position,then the finished book will be push out.
4、The belt will deliver the finished book to the receive belt.
Detailed Data:
| 技术参数 （Technical Parameter） | |
| 工作速度 Working speed | 20-35次/分钟time/min |
| 最大产品尺寸 Max book width | 340mm(圆角一侧) ×270mm |
| 最小产品尺寸 Min book width | 120mm(圆角一侧) × 120mm |
| 最大切角高度 Max cutting height | 80mm |
| 空压机功率/气压(客户自备)Alir compressor | 2.5KW/0.6-0.8Mpa |
| 电源/总功率 Power | 220V/2KW |
| 占地尺寸(长×宽×高) Dimension (主机) | 1500 × 1500 × 1700mm,(收料带)500 × 1430mm |
| 机器净重 Weight | 600kg |

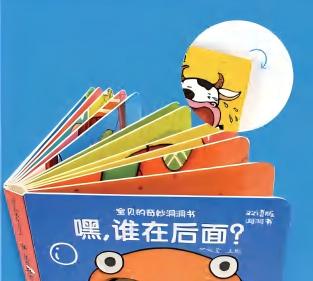

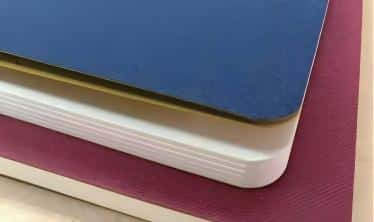

Samples:
