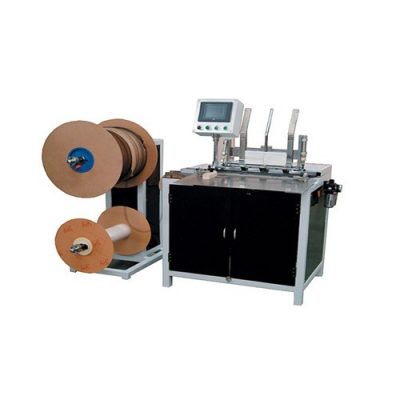

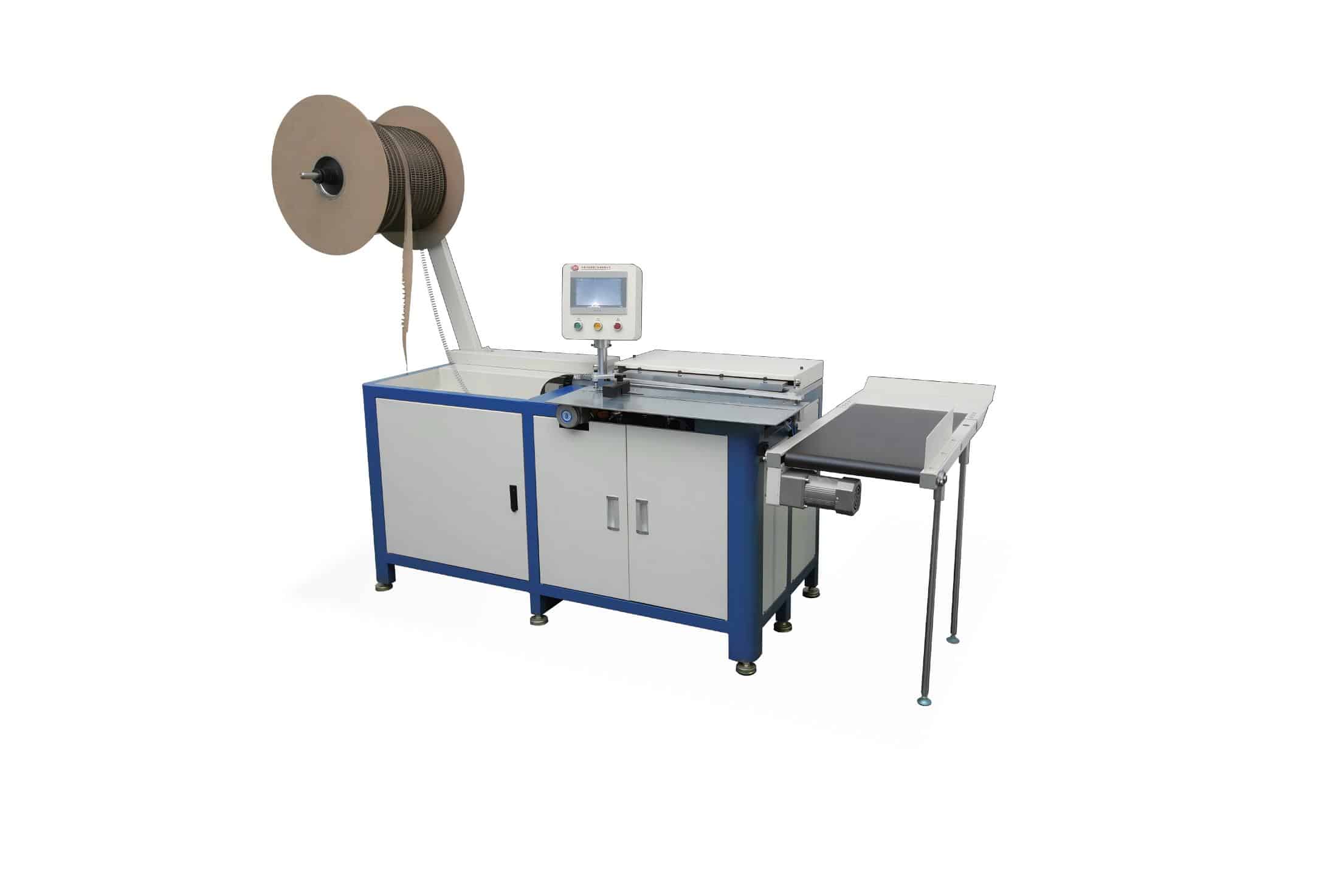

Machine Name: HB-520A Semi-Automatic Double Loop Wire Binding Machine (Latest High-Speed Model)
Description:
This machine is widely used for loose-leaf binding of notebooks, brochures, desk calendars, and other printed materials.
Its most notable feature is that it can bind all standard coil sizes without changing the mold.
It integrates automatic wire feeding, cutting, conveying, and binding in one process, greatly improving productivity and reducing costs.
With microcomputer control, the operation is simple, fast, and efficient.
It is especially suitable for books with inner and outer pages of different sizes.
Based on Japanese and Korean advanced technology, this model is the fastest and most versatile semi-automatic double loop wire binding machine in China.
Main Functions and Parameters:
1. Working speed: 800–2000 books/hour.
2. Binding wire diameter: 1/4″–7/8″; pitch available in 2:1 and 3:1.
3. Binding width: 50–520mm.
4. Automatic hanger installation system.
5. Suitable for books, notebooks, diaries, wall calendars, and desk calendars.
6. Automatic error detection and alarm.
7. Multi-language touch screen interface (customizable per client request).
8. Automatic book transmission for easy operation.
9. Upgraded linear slide system ensures long lifespan and high stability.
10. Wire can be segmented into up to six sections.
11. Optional automatic hanger bar system for wall calendars.
Technical Specifications:
Work Speed: 800–2000 books/hour
Air Pressure: 0.6–0.8 Mpa
Binding Range: 1/4″–7/8″
Max Binding Width: 520mm
Power Supply: 1PH/220V/50–60Hz
Main Machine Dimensions: 2150×800×1600mm
Machine Weight: 350Kg

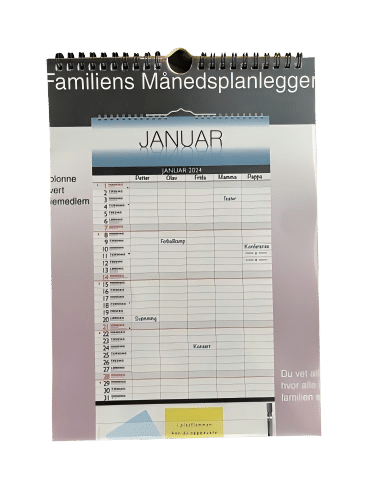

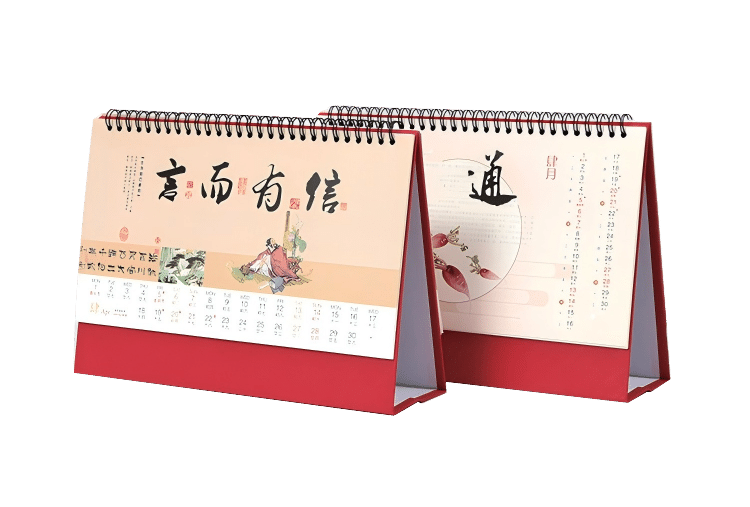

Samples:
VIDEO of double loop wire binding machine
