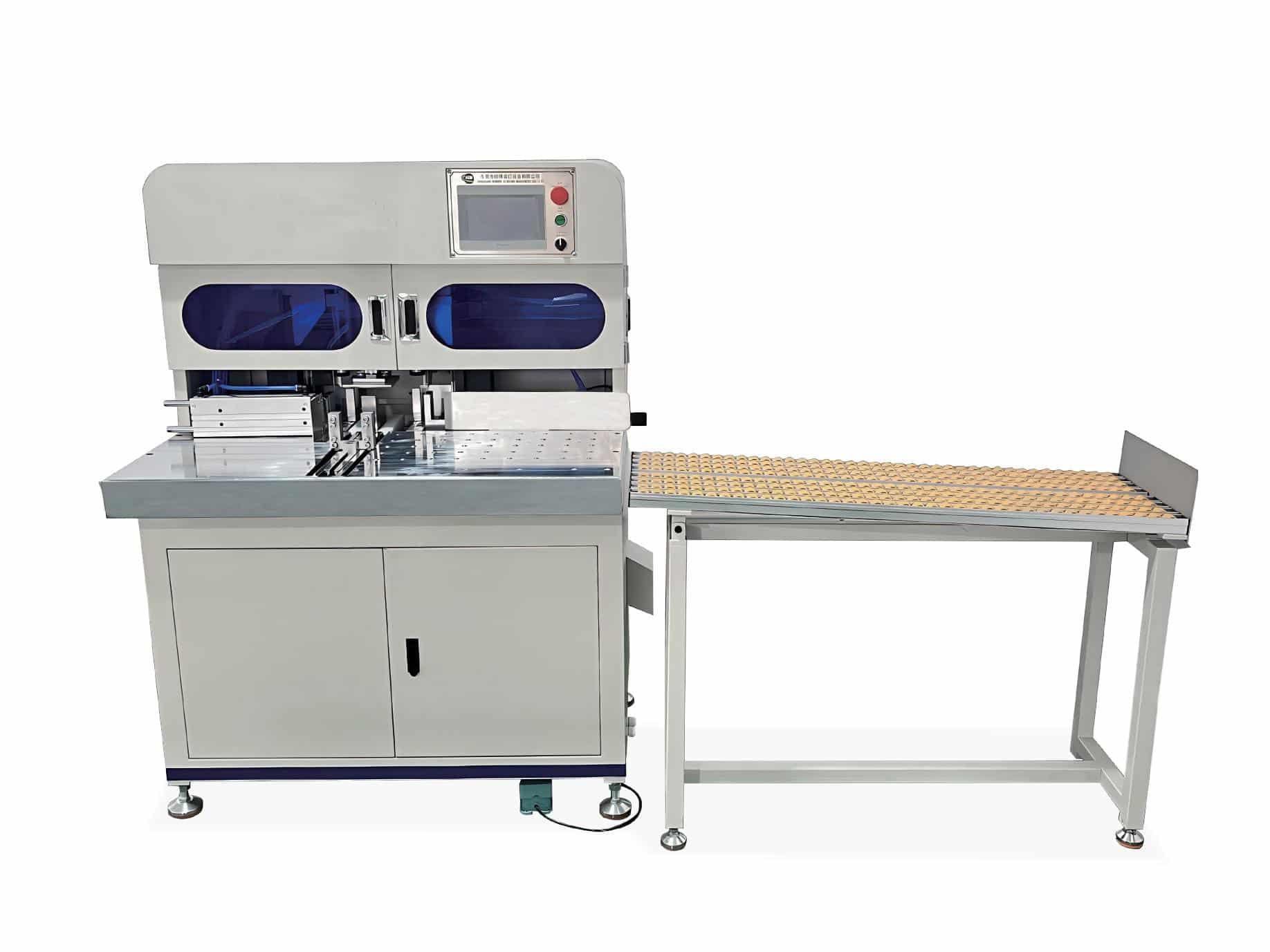

Machine Name: HL-QJ-460 Intelligent double corner cutting machine
Description:
Working process:
1、Feed the book by manual.
2、Push the book automatically.
3、Push the book from right side to make sure all four side has been push tightly, then the cutter will go down to cut.
4、After cutting and push part will also go back to origin position, then the left push part will push
The advantage of the machine：
- This machine can push the book automatically,cutting the corner automatically,push the finished book away automatically, which will improve the efficiency twice than normal cutting machine.
- This machine is control by PLC,touch screen,can cut the round corner very well,easy to change the cutter.
- This machine use the special high-accuracy cutter. which use the technology of chromium steel for bottom cutter,it will not have the situation of bottom paper can not cut well.
Detailed Data:
| 技术参数（Technical Parameter） | |
| 工作速度 Working speed | 15-30次/分钟 （30times/min） |
| 最大产品尺寸 Max book width | 460mm ×320mm(圆角一侧)(Round side) |
| 最小产品尺寸 Min book width | 130mm×130mm(圆角一侧),手动模式100mm(圆角一侧) |
| 最大切角高度 Max cutting height | 100mm |
| 空压机功率/气压(客户自备) Air compressor | 2.5KW/0.6-0.8Mpa |
| 电源/总功率 Power | 220V/1KW |
| 占地尺寸(长×宽×高) Dimems ion | (1100主机+1500mm) ×730 × 1430mm |
| 机器净重 Weight | 300kg |

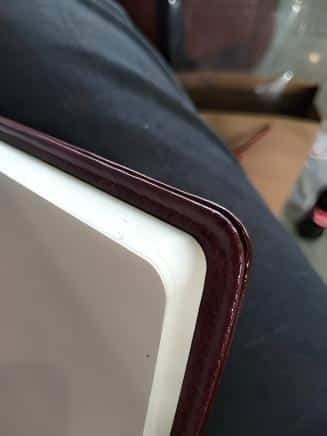

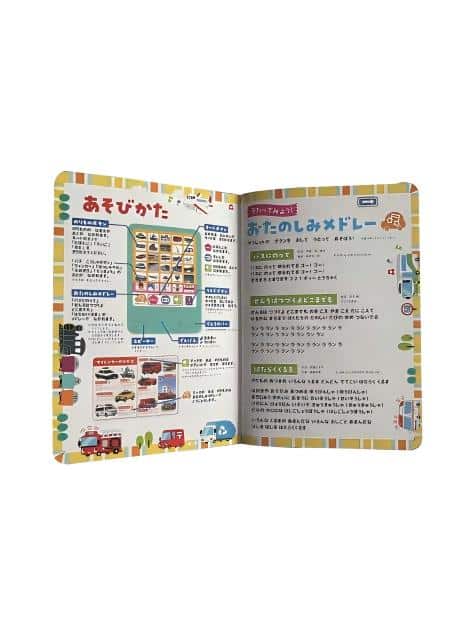

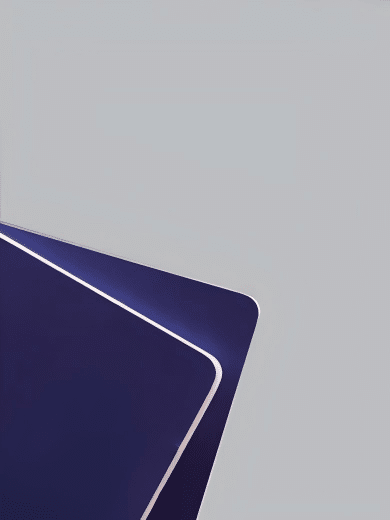

Samples:
