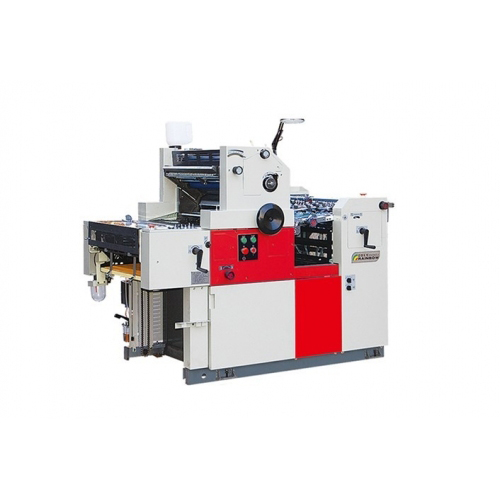

HL-JY47A/56A Economy single color offset press machine

HL-JY47A/56A Economy single color offset press machine 1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably. 2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustmen ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

HL-JY47A/56A Economy single color offset press machine 1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.

3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.

4. Preset counter: This machine adopts electromagnetic preset counter. If the quantified printing work finishes, the paper feeding stops automatically.

5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.

6. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.

Economy single color offset press machine

Detailed Data:

Model47A/47ANP/47II/47IINP56A/56ANP/56II/56IINP
Max. Paper size470*365mm560*400mm
Max. Printing size450*345mm550*375mm
Plate size470*395*0.15mm560*417*0.15mm
Blanket size470*420*1.95mm560*460*1.95mm
Paper weight28-250g/m228-250g/m2
Ink rollers qtyA series:

Main system 10 pcs(2 form ink rollers);

NP system 6pcs (2 form ink roller)

II series:

Main system 14 pcs (3 form ink rollers);

NP system 6pcs (2 form ink roller)

Dampening rollers qtyA series: 4pcs(1 form dampening rollers)

II series: 5pcs(2 form dampening rollers)

Min space between codes48mm vertical code:

vertical 71mm horizontal 48mm

60mm horizontal code:

Vertical 47mm horizontal 60mm

Registering mechanismRoller type side lay
Printing speedMain moto:1.1kw/220V Pump motor: 0.55kw/220V
Machine size47A/47II:

1760*935*1340mm

47ANP/47IINP

2000*935*1340MM

56A/56II:

1760*1035*1340mm

56ANP/56IINP

2000*1035*1340MM

Weight560/660/600/680kg620/720/660/740kg
