HL-JY47II/56II Advanced one color offset press machine 1. Adopt the imported high quality bearing and electronic components.
2. The copper sleeve is tin-bronze.
3. The wearing connecting rod is with nit-riding process.
4. The wallboard and cylinders are all strengthen, improving the machine life.
5. The dangerous parts are with safe switch
6. Double paper detector, two-revolution function, askew paper detector, paper jam detector.
7. Delivery table auto-dropping device, delivery table lowest prosition sensor, spraying power device and anti-static equipment
Main feature:
1. Print format is A2 specification, it can print two A3 and four A4 size printing at one time.
2. Preset the printing quality in advance.
3. Double paper detector. Which can remove the extra sheeted paper without stopping machine.
4. Paper delivery dolly drops automatically.
5. Auto and manual ink supply systems.
6. Safe switches assure the operator safe.
7. Auto stop function and fault indication function.
8. Separated vacuum pump for delivery paper provides enough air power
9. Adopt double motor and double air pump.
Pneumatic control system:
1. The pressure between plate cylinder impression cylinder and blanket cylinder are controlled by pneumatic device, compared with traditional, electromagnet rod structure, the pressure more stable, and dot clear, reducibility is better.
2. Dial code is controlled by pneumatic device, especially the NCR skipping printing faster response and less error-prone.
3. Pneumatic device control vertical and horizontal perforating knife. Can choose amount of perforating sheets at will, the pressure is more stable
4. Automatic lubricating oil supply system according to the working condition of the machine, automatic make lubrication.
NP printing function
62IINP offset machine has all the functions of 62II offset machine, and it can finish the job of offset printing, relief printing(resin plate),numbering and perforating in one time.
The machine adopts PLC control, high-grade automation

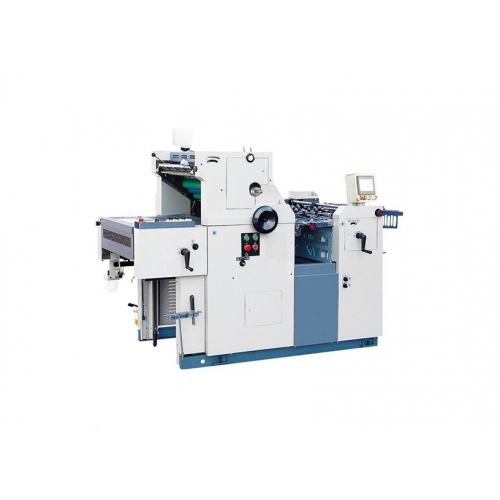

HL-JY47II/56II Advanced one color offset press machine
II-type machine has a new ink supply system:
The machine adopts a perfect ink system, three form ink rollers and two form dampening rollers. The structure fully assure enough ink supply and improve the printing quality
Detailed Data:
| Model | 47A/47ANP/47II/47IINP | 56A/56ANP/56II/56IINP |
| Max. Paper size | 470*365mm | 560*400mm |
| Max. Printing size | 450*345mm | 550*375mm |
| Plate size | 470*395*0.15mm | 560*417*0.15mm |
| Blanket size | 470*420*1.95mm | 560*460*1.95mm |
| Paper weight | 28-250g/m2 | 28-250g/m2 |
| Ink rollers qty | A series:
Main system 10 pcs(2 form ink rollers); NP system 6pcs (2 form ink roller) II series: Main system 14 pcs (3 form ink rollers); NP system 6pcs (2 form ink roller) |
|
| Dampening rollers qty | A series: 4pcs(1 form dampening rollers)
II series: 5pcs(2 form dampening rollers) |
|
| Min space between codes | 48mm vertical code:
vertical 71mm horizontal 48mm 60mm horizontal code: Vertical 47mm horizontal 60mm |
|
| Registering mechanism | Roller type side lay | |
| Printing speed | Main moto:1.1kw/220V Pump motor: 0.55kw/220V | |
| Machine size | 47A/47II:
1760*935*1340mm 47ANP/47IINP 2000*935*1340MM |
56A/56II:
1760*1035*1340mm 56ANP/56IINP 2000*1035*1340MM |
| Weight | 560/660/600/680kg | 620/720/660/740kg |
