HL-JY47ANP/56ANP/47IINP/56IINP Economy single color offset printing machine with number printing unit

HL-JY47ANP/56ANP/47IINP/56IINP Economy single color offset printing machine with number printing unit 1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably. 2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal reg ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

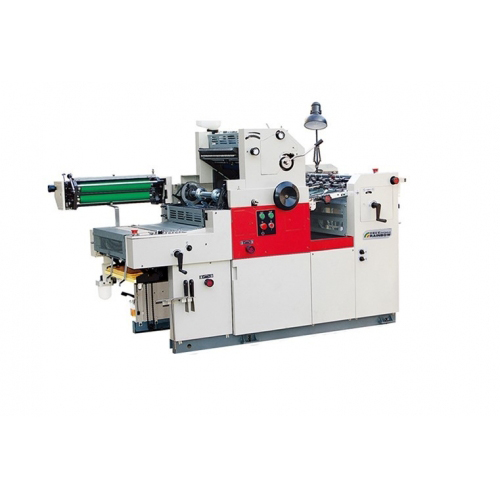

HL-JY47ANP/56ANP/47IINP/56IINP Economy single color offset printing machine with number printing unit

1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.

3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.

4. Preset counter: This machine adopts electromagnetic preset counter. If the quantified printing work finishes, the paper feeding stops automatically.

5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.

6. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.

offset printing machine with number printing

II-type machine has a new ink supply system:

The machine adopts a perfect ink system, three form ink rollers and two form dampening rollers. The structure fully assure enough ink supply and improve the printing quality

Numbering system main function

It can finish the job of offset printing, relief printing (resin plate), numbering and perforating in one time

Horizontal number quantity:

7 line x7 column=49 at most/ 9 line x 7 column =63 at most

Vertical number quantity:

5 line x8 column=40 at most/ 7 line x 8 column =56 at most

The min distance of perforating

Vertical: 25mm

Horizontal: 5mm

Resin plate printing size:

Cylinder type: 90*345MM

Partial head type: 30*40



Detailed Data:

Model 47A/47ANP/47II/47IINP 56A/56ANP/56II/56IINP
Max. Paper size 470*365mm 560*400mm
Max. Printing size 450*345mm 550*375mm
Plate size 470*395*0.15mm 560*417*0.15mm
Blanket size 470*420*1.95mm 560*460*1.95mm
Paper weight 28-250g/m2 28-250g/m2
Ink rollers qty A series:

Main system 10 pcs(2 form ink rollers);

NP system 6pcs (2 form ink roller)

II series:

Main system 14 pcs (3 form ink rollers);

NP system 6pcs (2 form ink roller)

Dampening rollers qty A series: 4pcs(1 form dampening rollers)

II series: 5pcs(2 form dampening rollers)

Min space between codes 48mm vertical code:

vertical 71mm horizontal 48mm

60mm horizontal code:

Vertical 47mm horizontal 60mm

Registering mechanism Roller type side lay
Printing speed Main moto:1.1kw/220V Pump motor: 0.55kw/220V
Machine size 47A/47II:

1760*935*1340mm

47ANP/47IINP

2000*935*1340MM

56A/56II:

1760*1035*1340mm

56ANP/56IINP

2000*1035*1340MM

Weight 560/660/600/680kg 620/720/660/740kg
