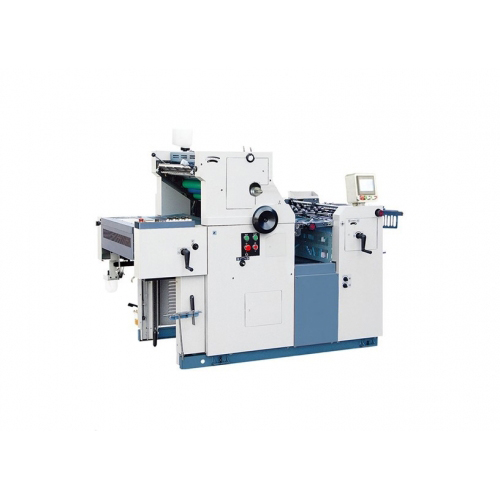

HL-JY62II Advanced Large size one color offset machine 1. Adopt the imported high quality bearing and electronic components.
2. The copper sleeve is tin-bronze.
3. The wearing connecting rod is with nit-riding process.
4. The wallboard and cylinders are all strengthen, improving the machine life.
5. The dangerous parts are with safe switch
6. Double paper detector, two-revolution function, askew paper detector, paper jam detector.
7. Delivery table auto-dropping device, delivery table lowest prosition sensor, spraying power device and anti-static equipment
1. Print format is A2 specification, it can print two A3 and four A4 size printing at one time.
2. Preset the printing quality in advance.
3. Double paper detector. Which can remove the extra sheeted paper without stopping machine.
4. Paper delivery dolly drops automatically.
5. Auto and manual ink supply systems.
6. Safe switches assure the operator safe.
7. Auto stop function and fault indication function.
8. Separated vacuum pump for delivery paper provides enough air power
9. Adopt double motor and double air pump.
Pneumatic control system:
1. The pressure between plate cylinder impression cylinder and blanket cylinder are controlled by pneumatic device, compared with traditional, electromagnet rod structure, the pressure more stable, and dot clear, reducibility is better.
2. Dial code is controlled by pneumatic device, especially the NCR skipping printing faster response and less error-prone.
3. Pneumatic device control vertical and horizontal perforating knife. Can choose amount of perforating sheets at will, the pressure is more stable
4. Automatic lubricating oil supply system according to the working condition of the machine, automatic make lubrication.
NP printing function
62IINP offset machine has all the functions of 62II offset machine, and it can finish the job of offset printing, relief printing(resin plate),numbering and perforating in one time.
The machine adopts PLC control, high-grade automation
HL-JY62II Advanced Large size one color offset machine
|Max paper size||620*450mm|
|Max printing area||605*440mm|
|Ink roller qty||Main system 14pcs (3 form ink rollers)|
NP system 6pcs(2 form ink rollers)
|Dampening rollers||5 pcs (2 form dampening roller)|
|Registering mechanism||Roller type side lay|
|Printing speed||2000-7000 sheets/h||2000-6000 sheets/h|
|Motor power||Main motor 1.5kw/220v air pump motor 0.55kw/220v|
