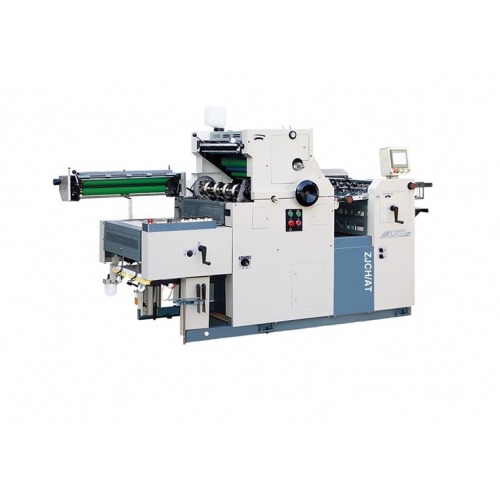

HL-JY47ANP/56ANP/47IINP/56IINP Advanced single color offset machine with number printing unit

HL-JY47ANP/56ANP/47IINP/56IINP Advanced single color offset machine with number printing unit 1. Adopt the imported high quality bearing and electronic components. 2. The copper sleeve is tin-bronze. 3. The wearing connecting rod is with nit-riding process. 4. The wallboard and cylinders are all strengthen, improving the machine life. 5. The dangerous parts are with safe switch 6. Double paper det ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

HL-JY47ANP/56ANP/47IINP/56IINP Advanced single color offset machine with number printing unit 1. Adopt the imported high quality bearing and electronic components.

2. The copper sleeve is tin-bronze.

3. The wearing connecting rod is with nit-riding process.

4. The wallboard and cylinders are all strengthen, improving the machine life.

5. The dangerous parts are with safe switch

6. Double paper detector, two-revolution function, askew paper detector, paper jam detector.

7. Delivery table auto-dropping device, delivery table lowest prosition sensor, spraying power device and anti-static equipment

Main feature:

1. Printing on 470*365mm/560*400mm

2. Preset the printing quality in advance.

3. Double paper detector. Which can remove the extra sheeted paper without stopping machine.

4. Paper delivery dolly drops automatically.

5. Auto and manual ink supply systems.

6. Safe switches assure the operator safe.

7. Auto stop function and fault indication function.

8. Separated vacuum pump for delivery paper provides enough air power

9. Adopt double motor and double air pump.

Pneumatic control system:

1. The pressure between plate cylinder impression cylinder and blanket cylinder are controlled by pneumatic device, compared with traditional, electromagnet rod structure, the pressure more stable, and dot clear, reducibility is better.

2. Dial code is controlled by pneumatic device, especially the NCR skipping printing faster response and less error-prone.

3. Pneumatic device control vertical and horizontal perforating knife. Can choose amount of perforating sheets at will, the pressure is more stable

4. Automatic lubricating oil supply system according to the working condition of the machine, automatic make lubrication.

NP printing function

62IINP offset machine has all the functions of 62II offset machine, and it can finish the job of offset printing, relief printing(resin plate),numbering and perforating in one time.

The machine adopts PLC control, high-grade automation

HL-JY47ANP/56ANP/47IINP/56IINP Advanced single color offset machine with number printing unit

Detailed Data:

Model47A/47ANP/47II/47IINP56A/56ANP/56II/56IINP
Max. Paper size470*365mm560*400mm
Max. Printing size450*345mm550*375mm
Plate size470*395*0.15mm560*417*0.15mm
Blanket size470*420*1.95mm560*460*1.95mm
Paper weight28-250g/m228-250g/m2
Ink rollers qtyA series:

Main system 10 pcs(2 form ink rollers);

NP system 6pcs (2 form ink roller)

II series:

Main system 14 pcs (3 form ink rollers);

NP system 6pcs (2 form ink roller)

Dampening rollers qtyA series: 4pcs(1 form dampening rollers)

II series: 5pcs(2 form dampening rollers)

Min space between codes48mm vertical code:

vertical 71mm horizontal 48mm

60mm horizontal code:

Vertical 47mm horizontal 60mm

Registering mechanismRoller type side lay
Printing speedMain moto:1.1kw/220V Pump motor: 0.55kw/220V
Machine size47A/47II:

1760*935*1340mm

47ANP/47IINP

2000*935*1340MM

56A/56II:

1760*1035*1340mm

56ANP/56IINP

2000*1035*1340MM

Weight560/660/600/680kg620/720/660/740kg
