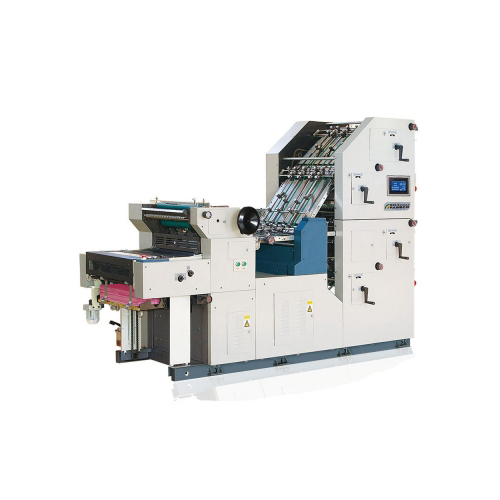

HL-JY47/56DM-4PY Paper bill collating and numbering printing Machine

HL-JY47/56DM-4PY Paper bill collating and numbering printing Machine adopts the single numbering part, which make the machine structure more compact, the operation more easy. The machine is mainly used to collate and code the finished-printing bill, improve the working efficiency and save the waste. Each paper feeding section is with the ultrasonic detector, it not only can collate and code on eac ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

HL-JY47/56DM-4PY Paper bill collating and numbering printing Machine adopts the single numbering part, which make the machine structure more compact, the operation more easy.

The machine is mainly used to collate and code the finished-printing bill, improve the working efficiency and save the waste. Each paper feeding section is with the ultrasonic detector, it not only can collate and code on each bill, but also can code on the four bills at one time

collating and numbering printing Machine

Detailed Data:

Model47DM-4PY56DM-4PY47-4PY56-4PY
Max. Paper size470*365mm560*400mm470*365mm560*400mm
Min. Paper size210*210mm250*210mm210*210mm250*210mm
Paper weight28-157g/m2
Ink rollers Qty6 pcs ink rollers (2 pcs form ink rollers)
Speed2000-6000 sheets/hour
Min space between codesVertical Number: vertical 71mm, horizontal 48mm

Horizontal Number: vertical 47mm, horizontal 60mm

Motor powerMain motor: 1.5kw/220v

Pump motor: 0.55kw/220v *4 sets

Main motor: 1.1kw/220v

Pump motor: 0.55kw/220v *4 sets

Machine size2600*935*1680mm2600*1035*1680mm2200*935*1680mm2200*1035*1680mm
Weight1400kg1500kg600kg700kg
