HL-JY474 564 624 light type four color offset press machine 1.Precise location: Front guide, side-pulled-guide, feed-table tune-up, plate tune-up, ensure locating precision of paper sheets and perfect printing results.
2.Easy operation: Water&ink feeding and impression are all operated by one switch dividedly. The impressing roller on/off is controlled by electric eye accurately and reliably.
3.Overlap detection: It can exclude the trouble such as overlap and non-stopped printing.
4.Separating damping from inking: Damping system is separated from inking system. It can adjust damping and inking flexibly, which can content the request of different prints for water and ink.
5.Presetting counter: It adopts electromagnetic presetting counter. If the printing of presetting finish, the input stop automatically.
6.The whole machine is controlled by PLC Computer, with the function of stopping printing automatically when paper blocked.

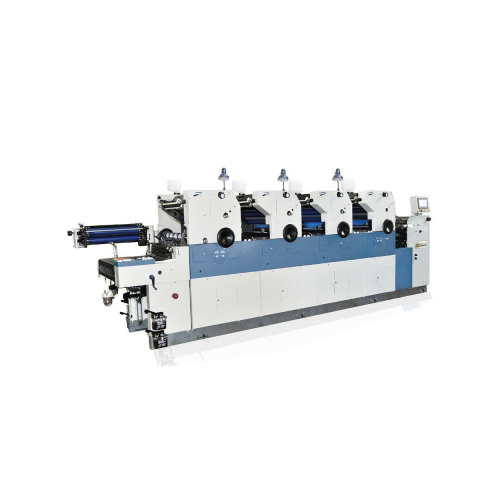

four color offset press machine
Detailed Data:
| Model | HL474 | HL564 | HL624 |
| Max.printing size | 454*345 | 550*375 | 610*420 |
| Max. sheet size | 470*365 | 560*400 | 620*440 |
| Min. sheet size | 90*140 | 90*140 | 90*140 |
| Plate size | 470*365*0.15 | 560*420*0.15 | 620*470*0.15 |
| Blanket size | 466*415*1.95 | 560*455*1.95 | 620*510*1.95 |
| Usable paper | 28-300g | 28-300g | 28-300g |
| Ink roller(3 forme) | 14 | 14 | 14 |
| Water rollers(2 forme) | 5 | 5 | 5 |
| Speed(sheets/h) | 2000-9000 | 2000-9000 | 2000-9000 |
| Power supply | 220v,60Hz | 220v,60Hz | 220v,60Hz |
| Dimension(cm) | 450*110*140 | 460*110*140 | 480*120*140 |
| Weight | 2400kg | 2600kg | 2900kg |
