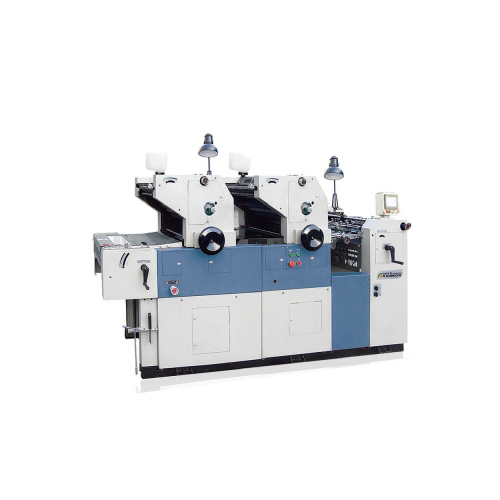

HLJY247II / JY256II/JY262II double color offset printing machine

PROFILE OF HLJY247II / JY256II/JY262II double color offset printing machine 1. Easy operation: The machine adopts pneumatic clutch supported by air pump. The touch screen let operation very easy. 2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/ ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

PROFILE OF HLJY247II / JY256II/JY262II double color offset printing machine

1. Easy operation: The machine adopts pneumatic clutch supported by air pump. The touch screen let operation very easy.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.

3. Quick plate registration: The plate can be moved axially, which make registration convenient.

4. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. This is good for multicolor printing.

5. Preset counter: This machine adopts electromagnetic preset counter. If the quantized printing work finishes, the paper feeding stops automatically.

6. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.

7. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, step forward and backward. Ink auto supply system let the color of printing be more uniform.

8. Ⅱ-class: There are forme 3 inking rollers and 2 forme dampening rollers. We improved the order of inking rollers. Three ink vibrators can drives fast back and forth. Thus the inking supply can be transferred fast and uniform.

double color offset printing machine

Detailed Data:

Model247II256II262II
Max.printing size454*345550*375605*440
Max. sheet size470*365560*400620*450
Min. sheet size90*14090*140210* 297
Plate size470*365*0.15560*420*0.15620*480*0.15
Blanket size466*415*1.95560*455*1.95620*510*1.95
Usable paper28-300g28-300g28-300g
Ink roller(3 forme)141414
Water rollers(2 forme)555
Speed(sheets/h)2000-90002000-90002000-9000
Power supply220v,50/60Hz220v,50/60Hz220v,50/60Hz
Dimension(cm)280*93*135280*98*135320*120*140
Weight1000kg1200kg1300kg
