HL247ⅡNP / HL256ⅡNP double color offset press machine with Numbering printing unit

PROFILE OF HL247ⅡNP / HL256ⅡNP double color offset press machine with Numbering printing unit 1. Easy operation: The machine adopts pneumatic clutch supported by air pump. The touch screen let operation very easy. 2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder r ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Features

PROFILE OF HL247ⅡNP / HL256ⅡNP double color offset press machine with Numbering printing unit

1. Easy operation: The machine adopts pneumatic clutch supported by air pump. The touch screen let operation very easy.

2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.

3. Quick plate registration: The plate can be moved axially, which make registration convenient.

4. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. This is good for multicolor printing.

5. Preset counter: This machine adopts electromagnetic preset counter. If the quantized printing work finishes, the paper feeding stops automatically.

6. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.

7. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, step forward and backward. Ink auto supply system let the color of printing be more uniform.

8. Ⅱ-class: There are forme 3 inking rollers and 2 forme dampening rollers. We improved the order of inking roller. Three ink vibrators can drives fast back and forth. Thus the inking supply can be transferred fast and uniform.

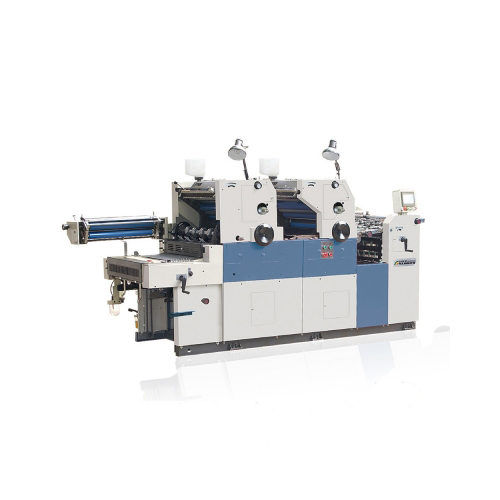

double color offset press machine

Detailed Data:

ModelHL247ⅡNPHL256ⅡNP
Max.printing size460 × 345mm550 × 375mm
Max. sheet size470 × 365mm560 × 400mm
Plate size470 × 395 × 0.15mm560 × 420 × 0.15mm
Blanket size470 × 420 × 1.95mm560 × 460 × 1.95mm
Usable paper28-250g/㎡28-250g/㎡
Ink roller14pcs (3 forme inking rollers)14pcs (3 forme inking rollers)
Dampening roller5pcs (2 forme dampeninging rollers)



5pcs (2 forme dampeninging rollers)



Numbering device



Straight type (horizontal):49heads Max.

(7 heads on a ring×7 rings on a shaft)



Convex type(vertical):40 heads Max.

(5 heads on a ring×8 rings on a shaft)

Straight type(horizontal): 56 heads Max.

(7 heads on a ring × 8 rings on a shaft)



Convex type(vertical): 45 heads Max.

(5 heads on a ring × 9 rings on a shaft)

Letter press deviceCylinder type: 90 × 345mm Max.

Mounting ring type: 30 × 40mm Max.

Cylinder type: 90 × 345mm Max.

Mounting ring type: 30 × 40mm Max.

Perforating device



Cross perforation: Min 25mm



Vertical perforation:

5mm(blade-perfo type)

2cm(rotary-perfo type)

Cross perforation: Min 25mm



Vertical perforation:

5mm(blade-perfo type)

2cm(rotary-perfo type)

Ink rollers for NP unit6pcs(2 forme inking rollers)6pcs(2 forme inking rollers)
Printing speed2000-8000 sheet/hour2000-8000 sheet/hour
Power supplysingle-phase: 220v,50hzsingle-phase: 220v,50hz
Main motor0.75kw1.5kw
Air pump motor0.55kw0.55kw
Machine dimension2600(L) × 880(W) × 1350(H)mm



2950(L) × 950(W) × 1350(H)mm



Net weight1300kg1450kg
Package dimension2800(L) × 1000(W) × 1450(H)mm3120(L) × 1120(W) × 1600(H)mm
